Circuit Schematic

WARNING: This page is about a different car, the 2010 Dodge Charger and 2010 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

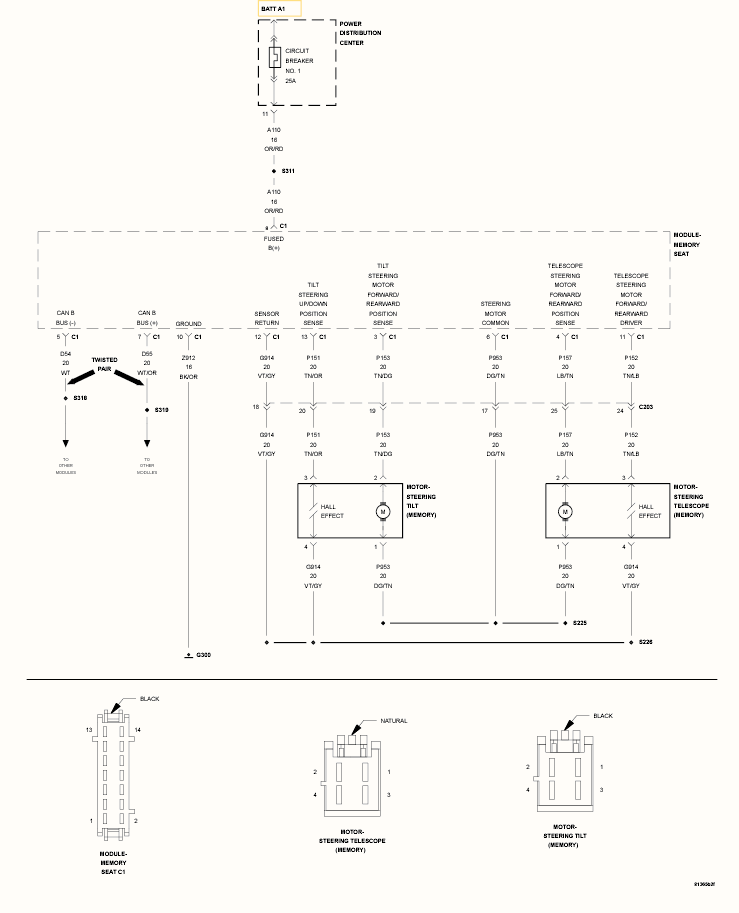

Fig 1: Steering Column Tilt Switch Circuit Schematic
GC0097772Courtesy of CHRYSLER LLC
