Front Seat Belt Buckle

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

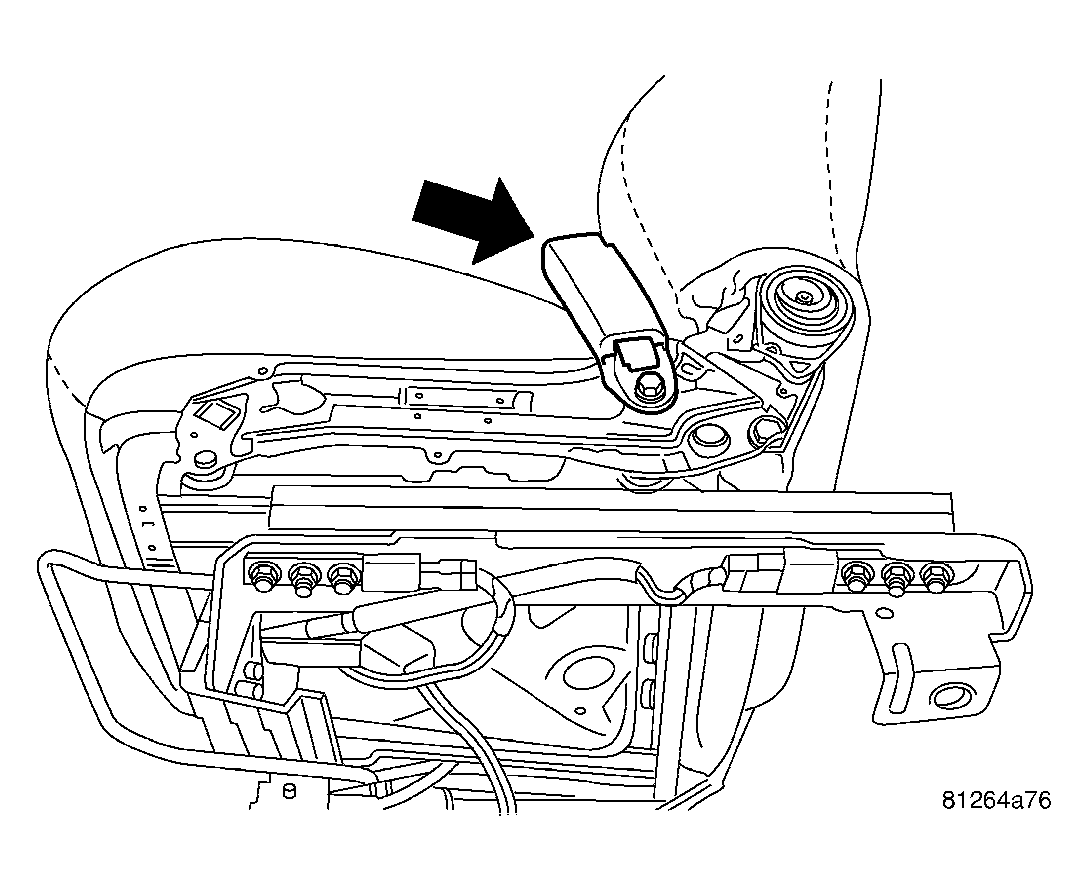

Fig 1: Buckle
GC0013560Courtesy of DAIMLERCHRYSLER CORP.
  1. Disconnect and isolate the battery negative cable.
    WARNING: Wait two minutes for the airbag system reserve capacitor to discharge before beginning any airbag system or component service. Failure to do so may result in accidental airbag deployment, personal injury or death.
  2. Remove center console from vehicle (Refer to BODY/INTERIOR/FLOOR CONSOLE - REMOVAL) .
  3. Remove the inner side shield from the front seat cushion.
  4. Disconnect the one electrical connector.
  5. Remove the one nut to the buckle assembly.
