Rear - Wagon

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

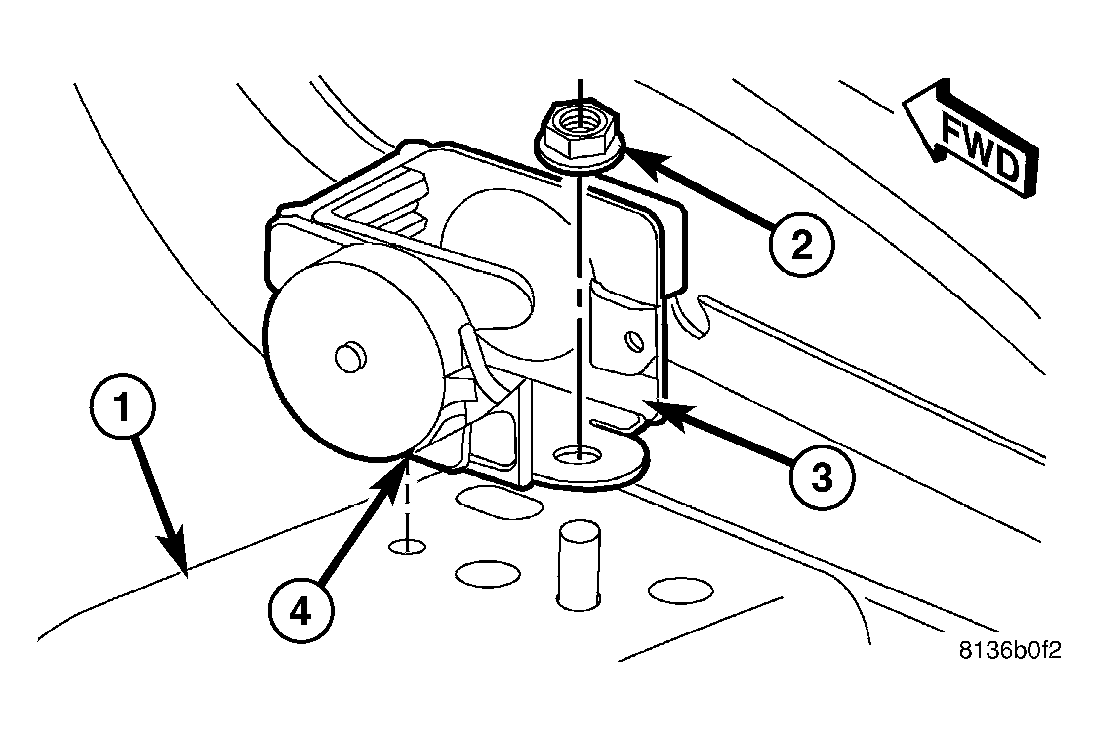

Fig 1: Rear Seat Belt Retractor
GC0016663Courtesy of DAIMLERCHRYSLER CORP.
  1. Place the one rear seat belt retractor (4) so that the indexing tab is in its slot.
  2. Install the retaining nut (2). Torque nut to 34 N.m (25 ft. lbs.).
  3. Install the quarter trim panel.
    Fig 2: Rear Seat Belt Anchor
    GC0016664Courtesy of DAIMLERCHRYSLER CORP.
  4. Install the lower seat belt anchor (2) bolt (3). Torque bolt to 32 N.m (24 ft. lbs.).
