Rear - Sedan

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

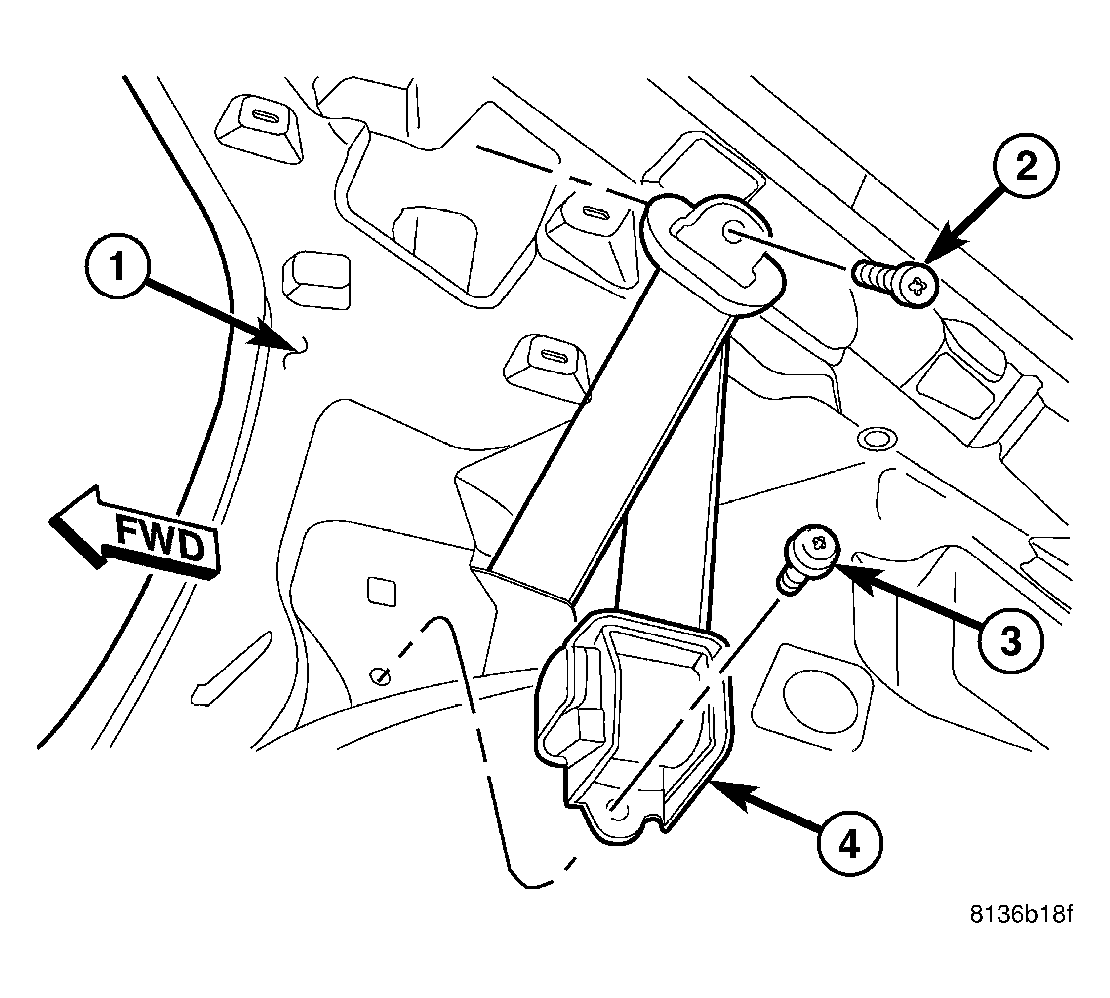

Fig 1: Bolt
GC0016665Courtesy of DAIMLERCHRYSLER CORP.
  1. Position the retractor (4) on the C-pillar to the indexing tab slips up into the pillar.
  2. Install the retractor mounting bolt (3). Torque bolt to 32 N.m (24 ft. lbs.).
    Fig 2: Bolt
    GC0016665Courtesy of DAIMLERCHRYSLER CORP.
  3. Install the one upper turning loop retaining bolt (2). Torque bolt to 40 N.m (30 ft. lbs.).

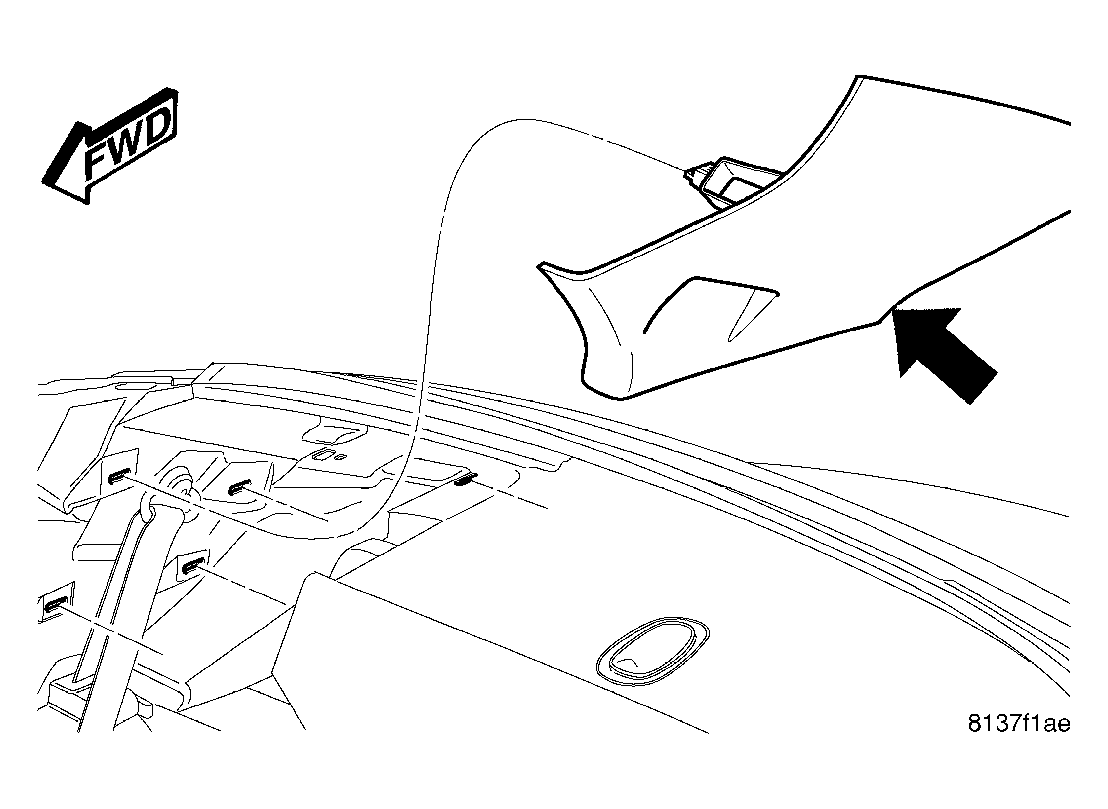

    Fig 3: C-Pillar Trim Panel
    GC0016666Courtesy of DAIMLERCHRYSLER CORP.
  4. Install the upper C-pillar trim panel (Refer to BODY/INTERIOR/C-PILLAR TRIM - INSTALLATION) .

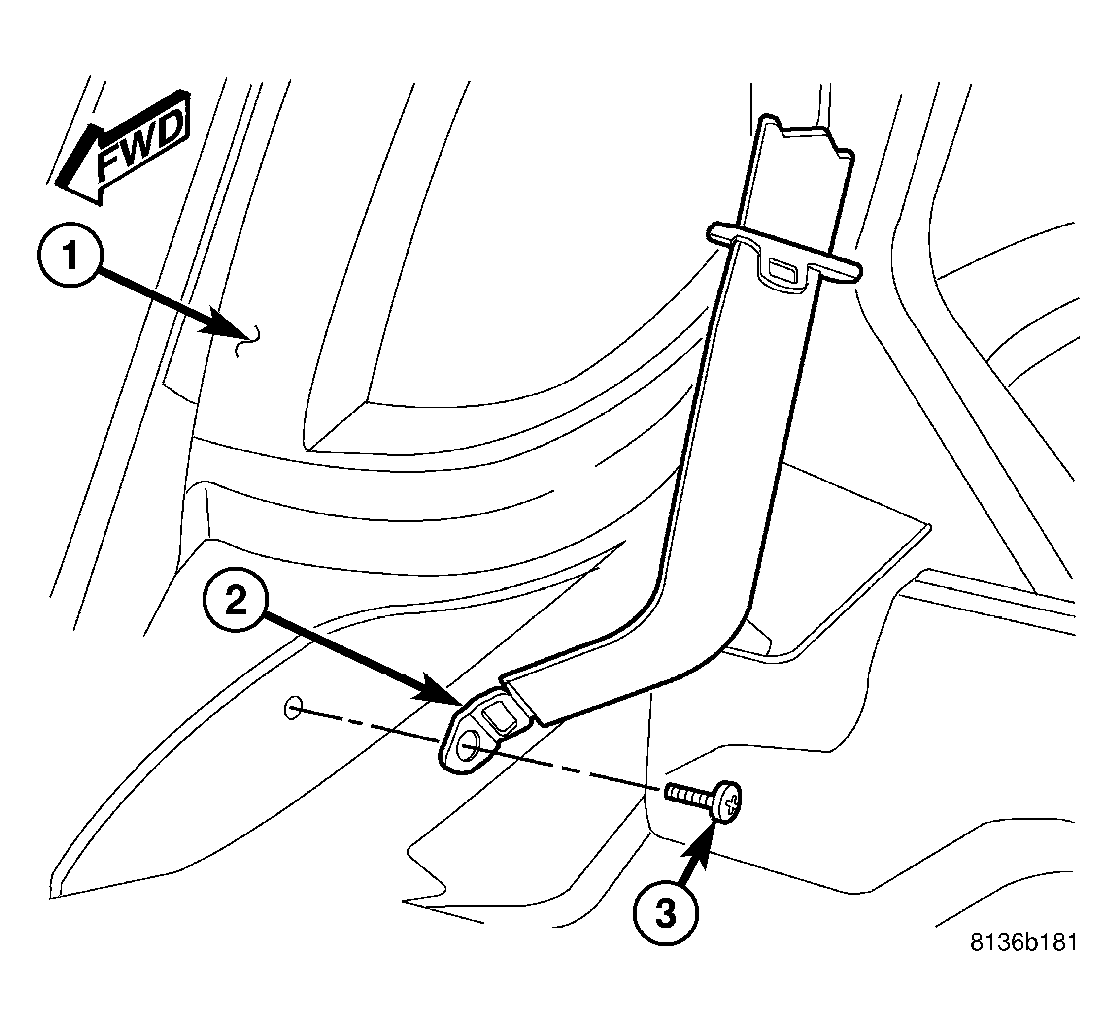

    Fig 4: Rear Seat Belt Anchor
    GC0016664Courtesy of DAIMLERCHRYSLER CORP.
  5. Install the lower seat belt anchor (2) bolt (3). Torque bolt to 32 N.m (24 ft. lbs.).
