Front Seat Belt Height Adjuster: Installation

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

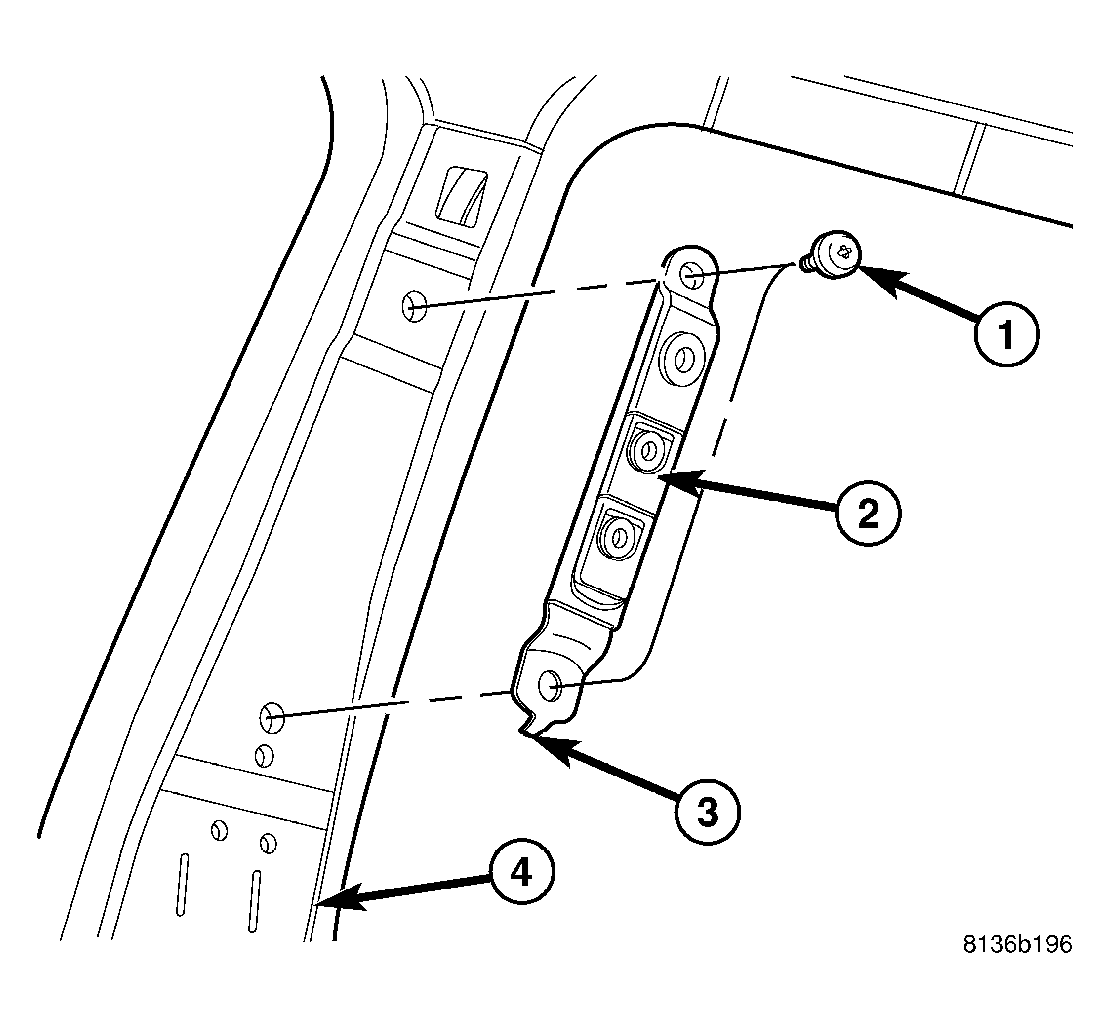

Fig 1: Seat Belt Height Adjuster
GC0016632Courtesy of DAIMLERCHRYSLER CORP.
  1. Position height adjuster making sure that indexing tab is in the proper hole.
  2. Install the two mounting bolts (1). Torque bolts to 32 N.m (24 ft. lbs.).

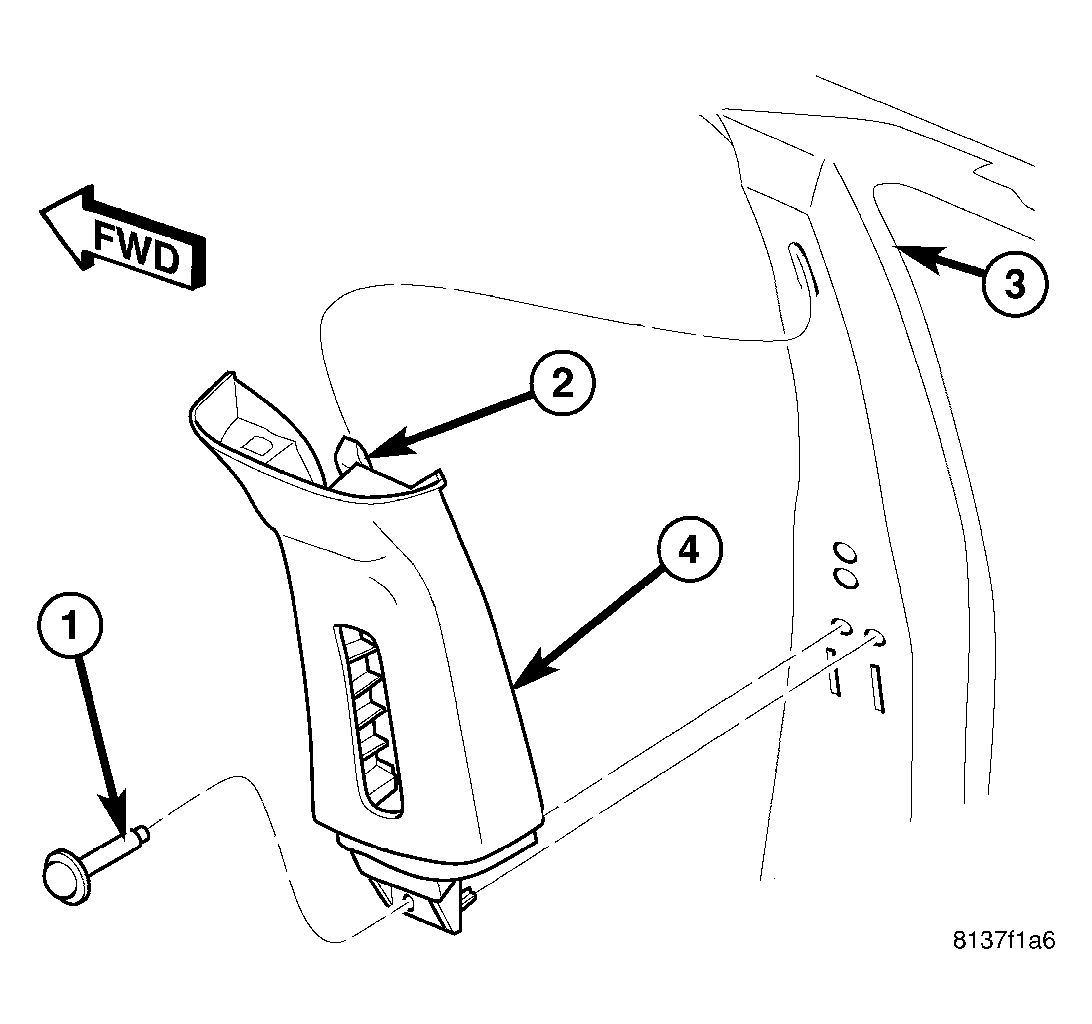

    Fig 2: B-Pillar Trim
    GC0013498Courtesy of DAIMLERCHRYSLER CORP.
  3. Install the upper B-pillar trim (Refer to BODY/INTERIOR/B-PILLAR TRIM - INSTALLATION) .
    Fig 3: Trim Cover
    GC0016633Courtesy of DAIMLERCHRYSLER CORP.
  4. Position the upper turning loop (3) and install the retaining bolt (4). Torque bolt to 40 N.m (30 ft. lbs.).
  5. Install the upper turning loop (3) trim cover (2).
