No Response From TPM (Tire Pressure Monitor Module): Notes
WARNING: This page is about a different car, the 2010 Dodge Charger and 2010 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of CHRYSLER LLC

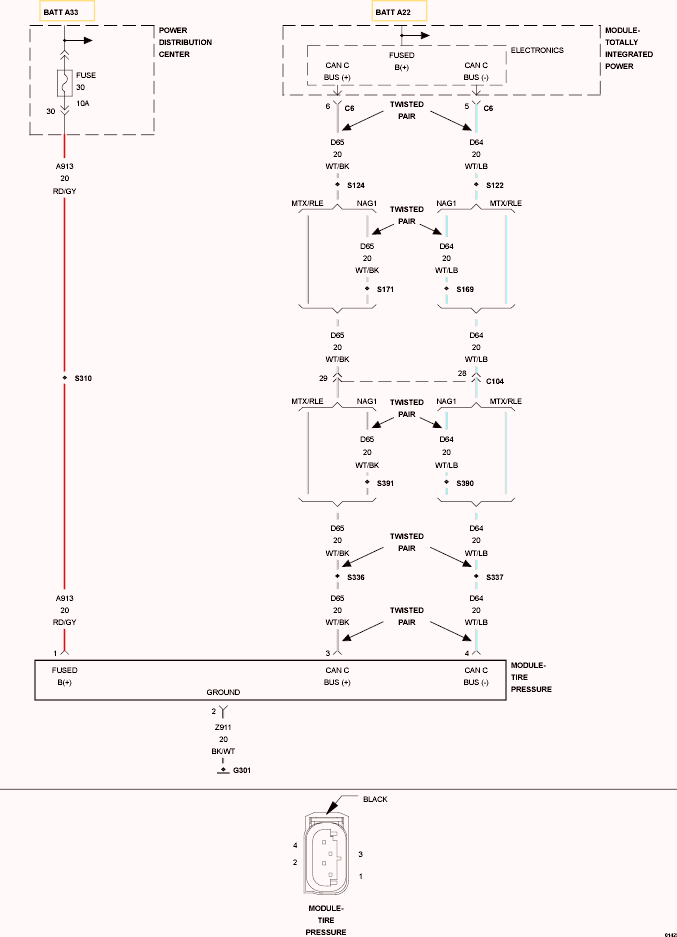

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article(s).
| Possible Causes |
| (A913) FUSED B(+) CIRCUIT OPEN OR SHORTED |
| (Z911) GROUND CIRCUIT OPEN |
| (D65) CAN C BUS (+) CIRCUIT OPEN |
| (D64) CAN C BUS (-) CIRCUIT OPEN |
| TIRE PRESSURE MONITOR MODULE |
