No Response From ESM (Electronic Shift Module) (Shifter Lever Assembly): Notes
WARNING: This page is about a different car, the 2010 Dodge Charger and 2010 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of CHRYSLER LLC

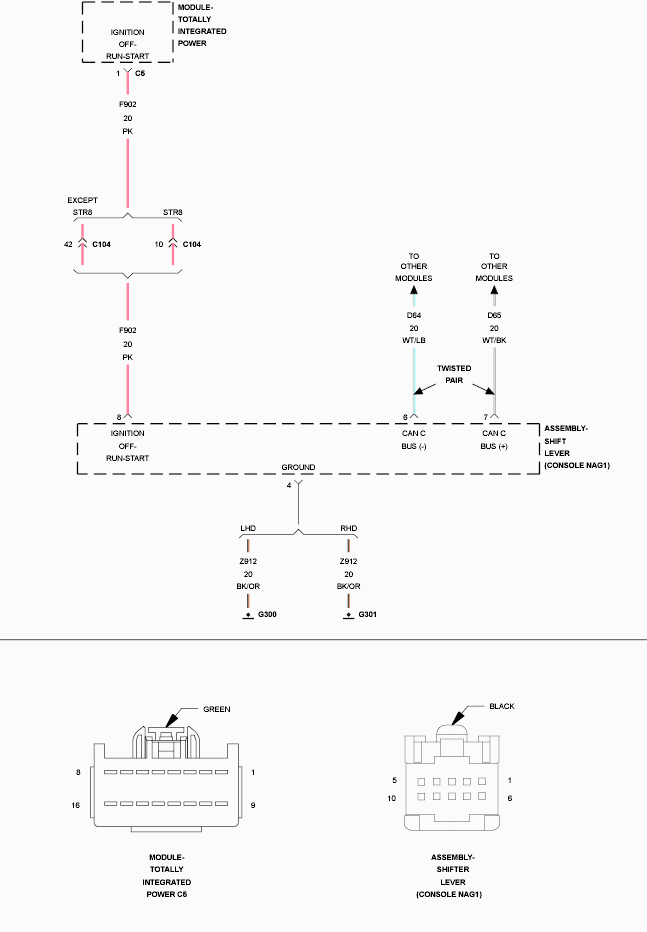

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article(s).
| Possible Causes |
| (Z910) GROUND CIRCUIT OPEN |
| (F902) IGNITION OFF-RUN-START CIRCUIT OPEN OR SHORTED |
| (D65) CAN C BUS (+) CIRCUIT OPEN |
| (D64) CAN C BUS (-) CIRCUIT OPEN |
| SHIFTER LEVER ASSEMBLY (ELECTRONIC SHIFT MODULE) |
