No Response From CCN (Cluster): Notes
WARNING: This page is about a different car, the 2010 Dodge Charger and 2010 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

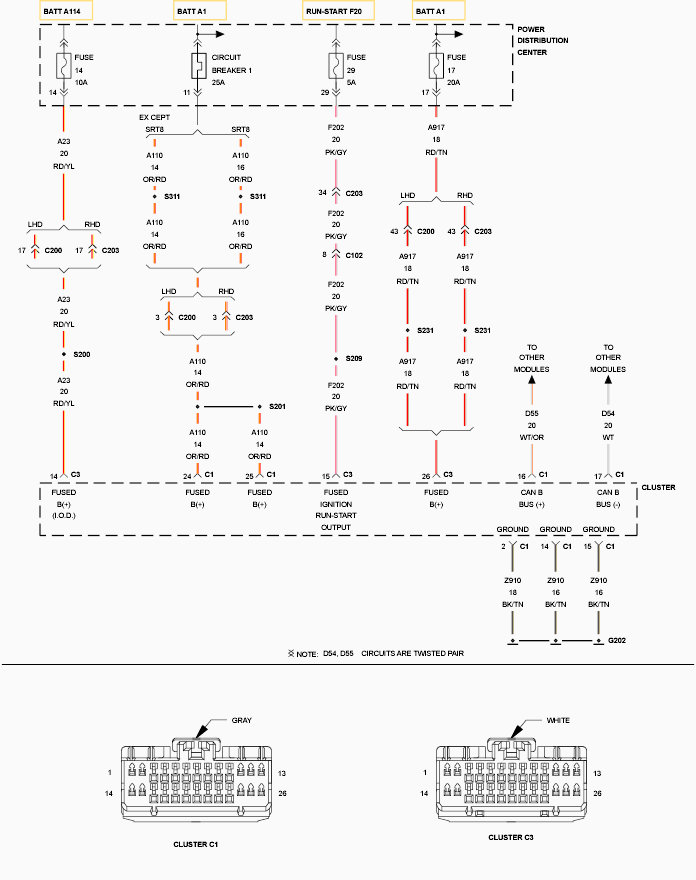

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article(s).
| Possible Causes |
|---|
| (A917) (A23) (A110) FUSED B(+) CIRCUITS OPEN OR SHORTED |
| (Z910) GROUND CIRCUITS OPEN |
| (F202) FUSED IGNITION SWITCH OUTPUT CIRCUIT OPEN OR SHORTED |
| (D55) AND (D54) CAN B BUS CIRCUITS OPEN |
| CLUSTER (CCN) |
