Diagnostic Can C (-) Circuit Open: Notes

WARNING: This page is about a different car, the 2010 Dodge Charger and 2010 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

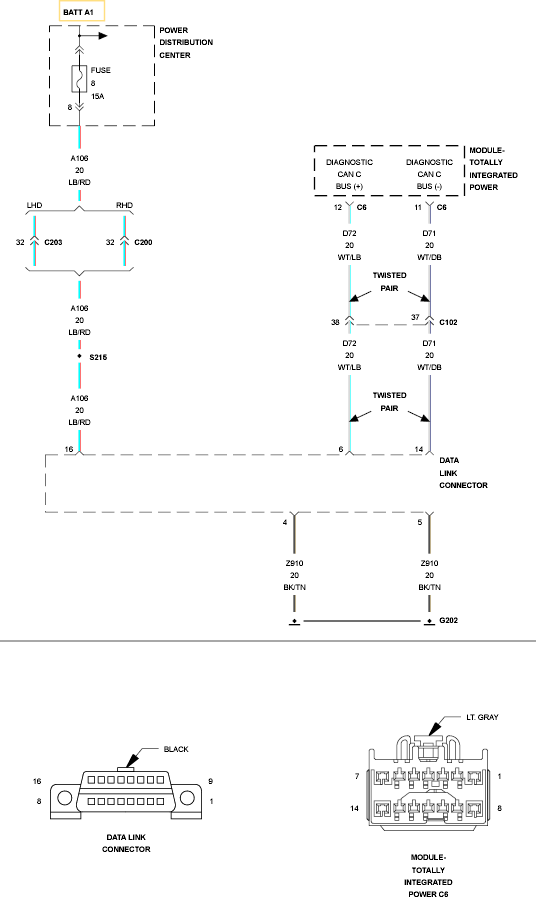

Fig 1: Diagnostic CAN C (+) & Diagnostic CAN C (-) Circuits - Circuit Schematic

Courtesy of CHRYSLER LLC

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article(s).

When Monitored:
When the scan tool queries the Totally Integrated Power Module (TIPM).
Set Condition:
The scan tool has detected an open condition on the (D71) Diagnostic CAN C (-) circuit.

Possible Causes
(D71) DIAGNOSTIC CAN C (-) CIRCUIT OPEN
TOTALLY INTEGRATED POWER MODULE
