Pressure Bleeding Method: Notes

WARNING: This page is about a different car, the 2010 Dodge Charger and 2010 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Follow pressure bleeder manufacturer's instructions for use of pressure bleeding equipment.

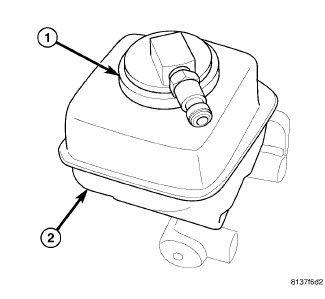

Fig 1: Tool 6921 Installed On Reservoir
GC0095150Courtesy of CHRYSLER LLC
  1. Remove filler cap from the top of fluid reservoir (2) on master cylinder.
  2. Install Adapter (1), Special Tool 6921, in the caps place on the reservoir (2).
  3. Attach Bleeder Tank, Special Tool C-3496-B, or equivalent, to Adapter 6921 (1). Pressurize the system following the pressure bleeder manufacturer's instructions.
    Fig 2: Vehicle Rear Raised For Bleeding
    GC0079788Courtesy of CHRYSLER LLC
    NOTE: To ensure all air is bled from the ICU or junction block in a timely manner, it is recommended to raise the rear of the vehicle approximately 5° higher than the front or approximately 10-12 inches as measured at the rear bumper (1).
  4. Raise and support vehicle placing rear of vehicle approximately 5° higher than the front or if measured at the rear bumper (1), approximately 10-12 inches above level. It will be necessary to add extra support stands under vehicle to support this angle.
    NOTE: The following wheel circuit sequence for bleeding the brake hydraulic system should be used to ensure adequate removal of all trapped air from the brake hydraulic system.
    • Right rear wheel
    • Left rear wheel
    • Right front wheel
    • Left front wheel
    Fig 3: Bleeding Caliper Inboard Half
    GC0079790Courtesy of CHRYSLER LLC
    CAUTION: Open the bleeder screw at least one full turn when instructed. Some air may be trapped in the brake lines or valves far upstream, as far as ten feet or more from the bleeder screw. If the bleeder screw is not opened sufficiently, fluid flow is restricted causing a slow, weak fluid discharge. This will NOT get all the air out. Therefore, it is essential to open the bleeder screw at least one full turn to allow a fast, large volume discharge of brake fluid.
    Fig 4: Bleeding Caliper Outboard Half
    GC0079791Courtesy of CHRYSLER LLC
    CAUTION: Open the bleeder screw at least one full turn when instructed. Some air may be trapped in the brake lines or valves far upstream, as far as ten feet or more from the bleeder screw. If the bleeder screw is not opened sufficiently, fluid flow is restricted causing a slow, weak fluid discharge. This will NOT get all the air out. Therefore, it is essential to open the bleeder screw at least one full turn to allow a fast, large volume discharge of brake fluid.
    Fig 5: Bleed Hose Set Up
    GC0079789Courtesy of CHRYSLER LLC
    CAUTION: Open the bleeder screw at least one full turn when instructed. Some air may be trapped in the brake lines or valves far upstream, as far as ten feet or more from the bleeder screw. If the bleeder screw is not opened sufficiently, fluid flow is restricted causing a slow, weak fluid discharge. This will NOT get all the air out. Therefore, it is essential to open the bleeder screw at least one full turn to allow a fast, large volume discharge of brake fluid.
