ROTOR, Brake: Installation: Front

WARNING: This page is about a different car, the 2010 Dodge Charger and 2010 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

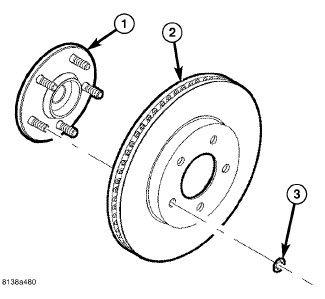

Fig 1: Vented Brake Rotor Mounting
GC0079735Courtesy of CHRYSLER LLC
NOTE: Inspect brake pads before installation. See Brakes/Hydraulic/Mechanical/PADS, Brake - Inspection .
  1. Clean hub face (1) to remove any dirt or corrosion where rotor mounts.
  2. Install brake rotor (2) over studs on hub and bearing.

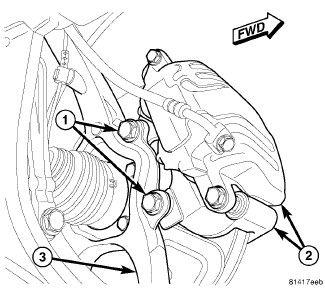

    Fig 2: Front Caliper and Adapter Mounting
    GC0079857Courtesy of CHRYSLER LLC
    NOTE: For Non-SRT vehicles, new caliper mounting bolts should be used because they come with a lock patch of thread locker on them. If reusing caliper mounting bolts, ensure the bolts and threads are clean of any leftover adhesive and apply Mopar© Stud N' Bearing Mount Adhesive or equivalent.
  3. AWD - Install disc brake caliper and adapter assembly (2) over brake rotor.
  4. AWD - Install NEW  mounting bolts (1) securing caliper adapter (2) to knuckle (3). Tighten bolts to 95 N.m (70 ft. lbs.).
    Fig 3: Front Caliper And Adapter Mounting
    GC0079858Courtesy of CHRYSLER LLC
  5. RWD - Install disc brake caliper and adapter assembly (3) over brake rotor.
  6. RWD - Install mounting bolts (2) securing caliper adapter (3) to knuckle (1). Tighten bolts to 95 N.m (70 ft. lbs.).

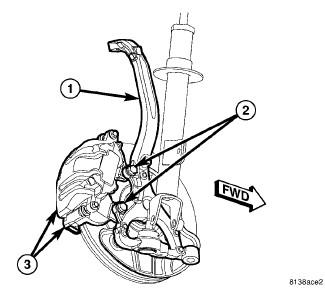

    Fig 4: Tire And Wheel Mounting
    GC0079683Courtesy of CHRYSLER LLC
  7. Install tire and wheel assembly (1). Refer to Tires and Wheels - Installation . Tighten wheel mounting nuts (3) to 150 N.m (110 ft. lbs.) (Police - 190 N.m (140 ft. lbs.)).
  8. Lower vehicle.
  9. Pump brake pedal several times to ensure vehicle has a firm brake pedal before moving vehicle.

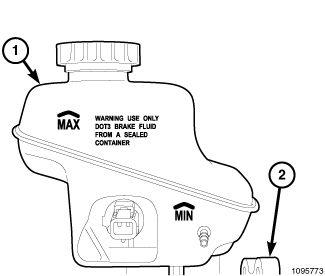

    Fig 5: Reservoir Fluid Level Markings
    GC0095169Courtesy of CHRYSLER LLC
  10. Check and adjust brake fluid level in reservoir (1) as necessary.
    CAUTION: If NEW brake rotors or pads have been installed, keep in mind that braking effectiveness might be somewhat reduced during the first brake applications following installation.
    CAUTION: A burnish procedure must be performed anytime NEW brake pads or rotors are installed on a vehicle equipped with the Police Package. This procedure is particularly important in situations where high speed pursuit is a possibility. It is recommended that the procedure be performed by the Police agency operating the vehicle so it can be performed in a safe controlled environment. This information is covered in the Police Package Owners Manual Supplement which was supplied when the vehicle was originally delivered.
  11. Road test vehicle making several stops to wear off any foreign material on brakes and to seat brake shoes. If the vehicle is equipped with the Police Package, a burnish procedure must be followed (Refer to preceding Caution).
