Pedal - RHD

WARNING: This page is about a different car, the 2010 Dodge Charger and 2010 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.
  1. Move driver's seat to full rearward position.
    Fig 1: Battery & Cables
    GC0079763Courtesy of CHRYSLER LLC
  2. Disconnect and isolate battery negative cable (2) from battery post.
  3. Remove driver side silencer under instrument panel. Refer to Body/Instrument Panel/PANEL, Silencer - Installation .
  4. Remove steering column opening cover. Refer to Body/Instrument Panel/COVER, Steering Column Opening - Installation
    Fig 2: Stop Lamp Switch Mounting - RHD
    GC0079839Courtesy of CHRYSLER LLC
  5. Remove stop lamp switch (2). Refer to Electrical/Lamps/Lighting - Exterior/SWITCH, Stop Lamp - Removal
    Fig 3: Removing Pedal Retaining Clip
    GC0079840Courtesy of CHRYSLER LLC
    CAUTION: When removing booster push rod from brake pedal pin, be careful not to damage rubber O-ring on pin.
  6. Remove booster push rod from pin on brake pedal. To do so:
    1. Position small screwdriver (1) between center tang on power brake booster brake pedal pin retaining clip (4).
    2. Rotate screwdriver enough to allow retaining clip center tang to pass over end of brake pedal pin (3), then slide retaining clip off brake pedal pin.
    3. Discard retaining clip. It is not to be reused. Install NEW retaining clip when assembling.
  7. Slide booster push rod (2) off brake pedal pin (3).

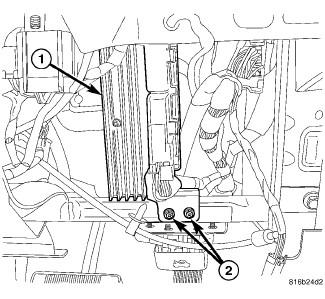

    Fig 4: Radio Amplifier/Transmission Control Module
    GC0095174Courtesy of CHRYSLER LLC
  8. Remove two lower (2) and one upper mounting screw fastening the radio amplifier/transmission control module assembly (1) in place.
  9. Disconnect four wiring connectors and remove radio amplifier/transmission control module assembly (1).
    Fig 5: Booster And Pedal Mounting - RHD
    GC0079841Courtesy of CHRYSLER LLC
  10. Remove four power brake booster (2) mounting nuts (5).
  11. Remove two nuts (4) fastening pedal bracket to upper dash panel (3).
  12. Push power brake booster (3) forward into engine compartment as far as possible by hand. Do not force it.
  13. Remove brake pedal (1).
