MASTER CYLINDER, Brake: Disassembly: Disassembly
WARNING: This page is about a different car, the 2010 Dodge Charger and 2010 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.
- Clean master cylinder housing and brake fluid reservoir. Use only Mopar® Brake Parts Cleaner or equivalent.
- Remove brake fluid reservoir cap (1). Using a syringe or equivalent type tool, empty as much brake fluid as possible from the reservoir.CAUTION: When removing fluid reservoir from the master cylinder, do not pry off using any type of tool. This can damage the fluid reservoir or master cylinder housing.
- Remove screw (3) fastening fluid reservoir to master cylinder housing.
- Rock the brake fluid reservoir side-to-side while pulling up to remove it from seal grommets in master cylinder housing.

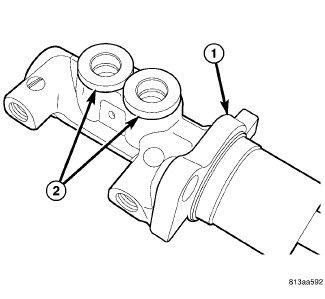

- Remove two brake fluid reservoir seal grommets (2) from master cylinder housing (1).
