Brake Pressure Sensor

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

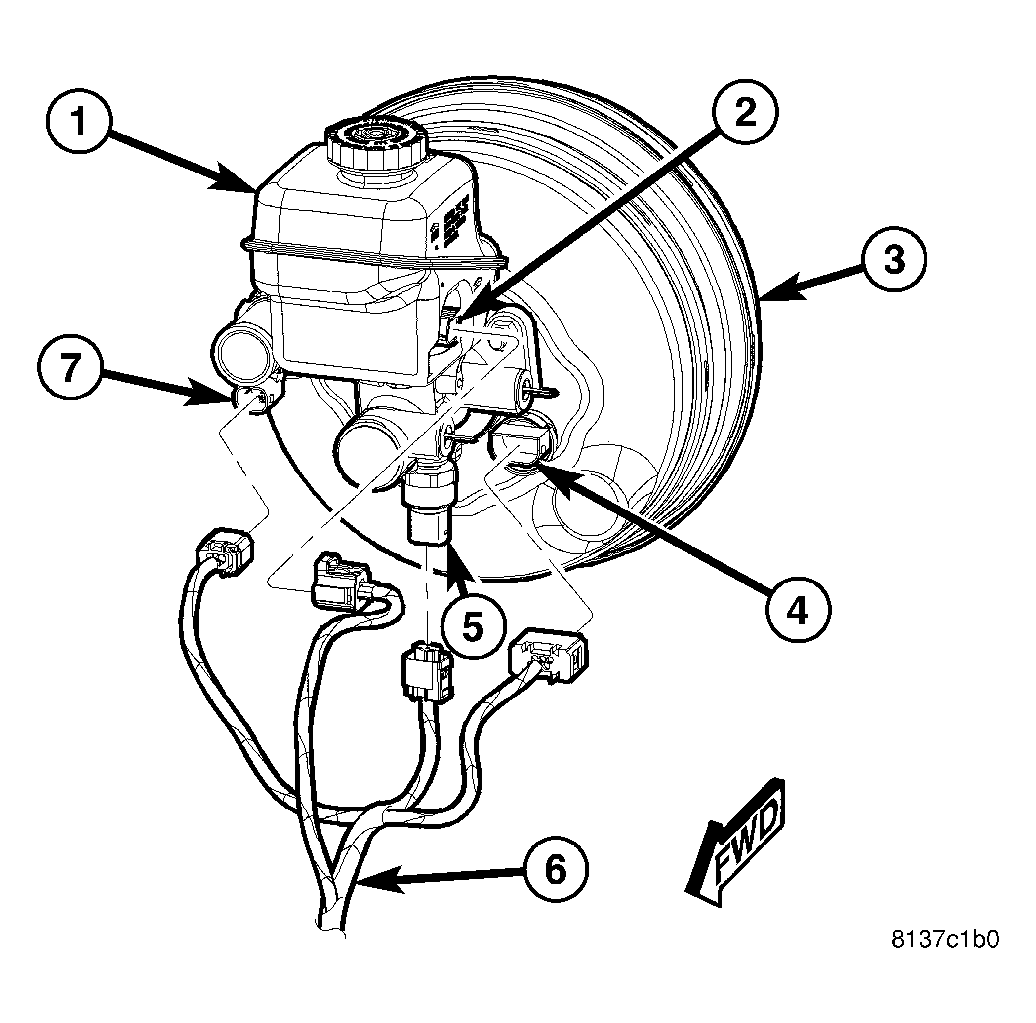

Fig 1: Identifying Master Cylinder Wiring Harness & Connectors

Courtesy of DAIMLERCHRYSLER CORP.

Disconnect wiring harness (6) connector from pressure sensor (5).

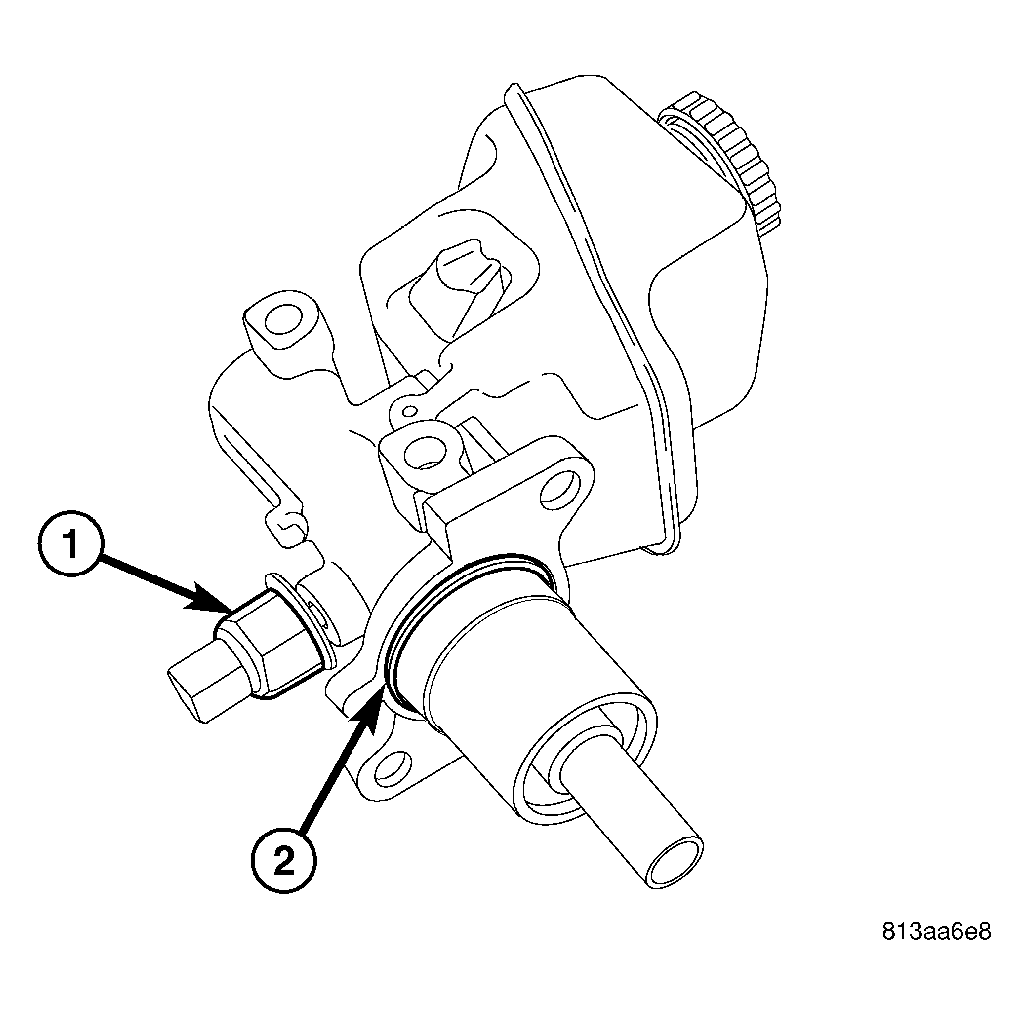

Fig 2: Removing Pressure Switch
Courtesy of DAIMLERCHRYSLER CORP.
Remove pressure sensor (1) on bottom of master cylinder.
