Brake Pressure Sensor - SRT8

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

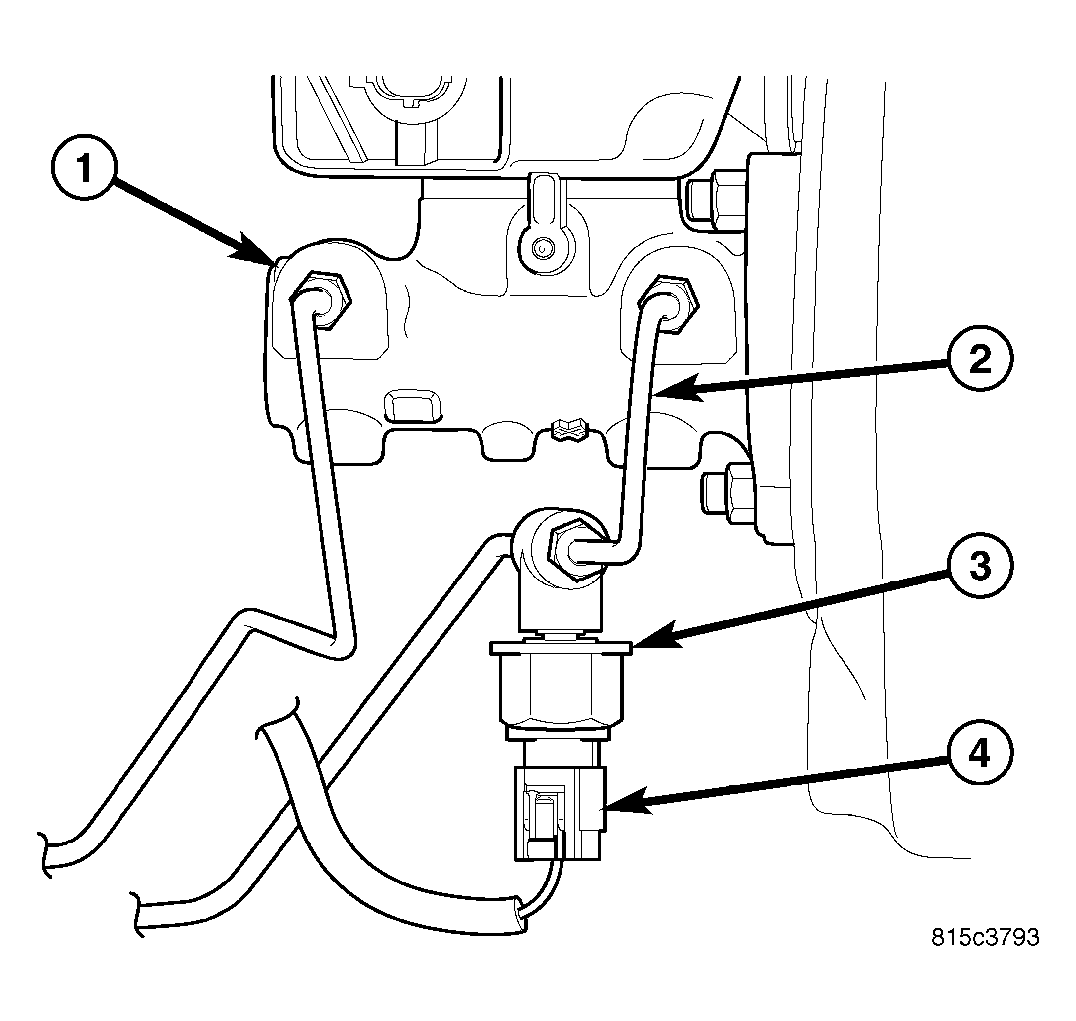

Fig 1: Brake Pressure Switch - SRT8
GC0039410Courtesy of DAIMLERCHRYSLER CORP.
  1. Disconnect wiring harness connector (4) from pressure sensor (3) below master cylinder (1).
  2. Remove pressure sensor (3) from fitting in primary brake tube (2).
