Fluid Drain And Fill

WARNING: This page is about a different car, the 2010 Dodge Charger and 2010 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: The fluid required for use in this axle is Mopar® Synthetic Gear and Axle Lubricant 75W-140.

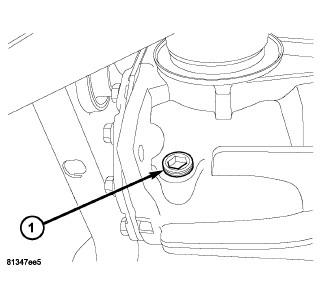

Fig 1: Rear Axle Drain Plug
GC0081516Courtesy of CHRYSLER LLC
  1. Drive the vehicle until the differential lubricant is at the normal operating temperature.
  2. With vehicle in neutral, position and raise vehicle on hoist.
  3. Remove rear axle drain plug (1) and drain lubricant completely from the axle.
  4. Install drain plug and tighten to 50 N.m (37 ft lbs).

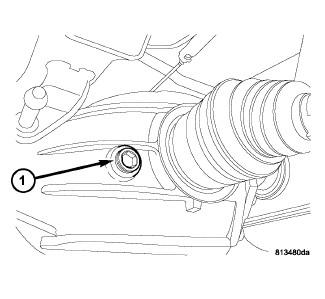

    Fig 2: Rear Axle Fill Plug
    GC0081517Courtesy of CHRYSLER LLC
  5. Remove fill plug (1) and fill rear axle with 1.2 L (1.3 qts.) Mopar® Synthetic Gear AND Axle Lubricant 75W-140 and insure axle is filled to the bottom of the fill hole.
  6. Install fill plug and tighten to 50 N.m (37 ft lbs).
