Diagnostic Test

1. Turn the ignition on.
2. With the scan tool, read ORC DTCs.

   Does the scan tool display active: U0171-LOST COMMUNICATION W/UP-FRONT RIGHT SATELLITE ACCELERATION SENSOR?

   Yes

   • Go to step  2

   No

   • Perform the RESTRAINTS SYSTEM INTERMITTENT TEST. See DTC-Based Diagnostics/CONTROLLER, Occupant Restraint (ORC) - Standard Procedure .

Fig 1: Checking Front Right Impact Sensor Signal & Ground Circuits For A Short To Voltage

Courtesy of CHRYSLER LLC

1. Disconnect the Right Front Impact Sensor connector.
2. Disconnect the ORC connector.
   WARNING: Turn the ignition on, then reconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.
3. Measure the voltage of the (R80) Front Right Impact Sensor Signal circuit and (R82) Sensor Ground circuit at the Front Right Impact Sensor connector and ground.

   Is there any voltage present?

   Yes

   • Repair the (R80 and R82) Front Right Impact Sensor circuits for a short to voltage.
   • Perform the RESTRAINTS SYSTEM VERIFICATION TEST. See DTC-Based Diagnostics/CONTROLLER, Occupant Restraint (ORC) - Standard Procedure .

   No

   • Go to step  3

Fig 2: Checking Front Right Impact Sensor Signal Circuit For A Short To Ground

Courtesy of CHRYSLER LLC

1. Measure the resistance of the (R80) Front Right Impact Sensor Signal circuit between the Front Right Impact Sensor connector and ground.

   Is the resistance below 100K ohms?

   Yes

   • Repair the (R80) Front Right Impact Sensor Signal circuit for a short to ground.
   • Perform the RESTRAINTS SYSTEM VERIFICATION TEST. See DTC-Based Diagnostics/CONTROLLER, Occupant Restraint (ORC) - Standard Procedure .

   No

   • Go to step  4

Fig 3: Checking Front Right Impact Sensor Circuits

Courtesy of CHRYSLER LLC

1. Measure the resistance between the (R80) Front Right Impact Sensor Signal and (R82) Sensor Ground circuits at the Front Right Impact Sensor connector.

   Is the resistance below 100K ohms?

   Yes

   • Repair the (R80, R82) Front Right Impact Sensor circuits shorted together.
   • Perform the RESTRAINTS SYSTEM VERIFICATION TEST. See DTC-Based Diagnostics/CONTROLLER, Occupant Restraint (ORC) - Standard Procedure .

   No

   • Go to step  5

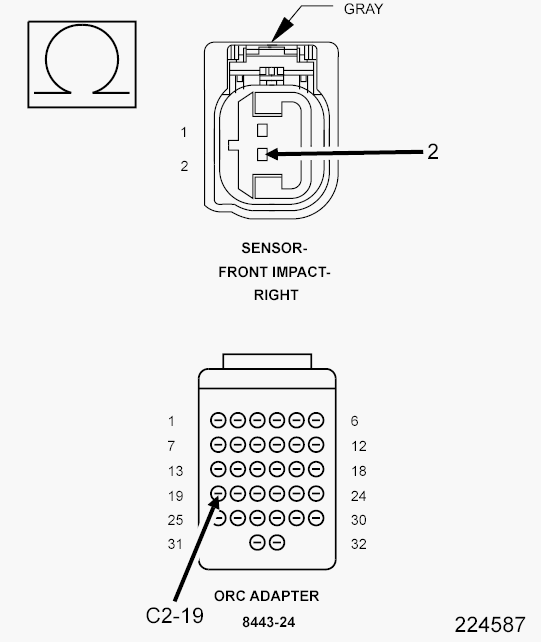

Fig 4: Checking Front Right Impact Sensor Ground Circuit For An Open Or High Resistance

Courtesy of CHRYSLER LLC

1. Connect the SRS Load Tool Adapter 8443-24 to the Occupant Control Module connector.
2. Measure the resistance of the (R82) Front Right Impact Sensor Ground circuit between the Front Right Impact Sensor connector and the SRS Load Tool Adapter 8443-24.

   Is the resistance below 1 ohm?

   Yes

   • Go to step  6

   No

   • Repair the (R82) Front Right Impact Sensor Ground circuit for an open or high resistance.
   • Perform the RESTRAINTS SYSTEM VERIFICATION TEST. See DTC-Based Diagnostics/CONTROLLER, Occupant Restraint (ORC) - Standard Procedure .

Fig 5: Checking Front Right Impact Sensor Circuit For An Open Or High Resistance

Courtesy of CHRYSLER LLC

1. Measure the resistance of the (R80) Front Right Impact Sensor Signal circuit between the Front Right Impact Sensor connector and the SRS Load Tool Adapter 8443-24.

   Is the resistance below 1 ohm?

   Yes

   • Go to step  7

   No

   • Repair the (R80) Front Right Impact Sensor Signal circuit for an open or high resistance.
   • Perform the RESTRAINTS SYSTEM VERIFICATION TEST. See DTC-Based Diagnostics/CONTROLLER, Occupant Restraint (ORC) - Standard Procedure .

1. Replace the Front Right Impact Sensor in accordance with the Service Information.
2. Reconnect the vehicle body harness to the impact sensor.
3. Remove any special tools or jumper wires and reconnect all previously disconnected components - except the Battery.
   WARNING: Turn the ignition on, then reconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.
4. Connect the scan tool to the Data Link Connector - use the most current software available.
5. Use the scan tool and erase the stored codes in all airbag system modules.
6. Turn the Ignition Off, and wait 15 seconds before turning the Ignition On.
7. Wait one minute, and read active codes and if there are none present read the stored codes.

   Did the active Front Right Impact Sensor DTC return?

   Yes

   • Go to step  8

   No

   • Repair is complete.
   • Perform the RESTRAINTS SYSTEM VERIFICATION TEST. See DTC-Based Diagnostics/CONTROLLER, Occupant Restraint (ORC) - Standard Procedure .

If there are no possible causes remaining, view repair.

Repair

• Replace the Occupant Restraint Controller (ORC)in accordance with Service Instructions.
• Perform RESTRAINTS SYSTEM VERIFICATION TEST. See DTC-Based Diagnostics/CONTROLLER, Occupant Restraint (ORC) - Standard Procedure .
