Diagnostic Test

WARNING: This page is about a different car, the 2010 Dodge Charger and 2010 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

DETERMINE ACTIVE OR STORED DTC
NOTE: Make sure the battery is fully charged.
1. Turn the ignition on.
2. With the scan tool, read all active ORC DTCs.
  Is the DTC active or stored?

  ORC - ACTIVE DTC
  - Go to step 2
  ORC - STORED DTC
  - Go to step 5
CHECK FOR DRIVER SEAT BELT RETRACTOR TENSIONER CIRCUIT OPEN

Fig 1: Checking For Shorted Driver Seat Belt Retractor Tensioner
Courtesy of CHRYSLER LLC

WARNING: Turn the ignition off, disconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.
1. Disconnect the Driver Seat Belt Retractor Tensioner connector.
  WARNING: Do not place an intact undeployed airbag face down on a hard surface, the airbag will propel into the air if accidentally deployed. Failure to follow these instructions may result in possible serious or fatal injury.

  NOTE: Check connectors - Clean and repair as necessary.
2. Connect the SRS Load Tool Kit 8443A and the SRS Load Tool Jumper 8443-8 (domestic) or 8443-20 (export) to the Driver Seat Belt Retractor Tensioner connector.

  Fig 2: Connecting SRS Load Tool Kit 8443
  Courtesy of CHRYSLER LLC

  WARNING: Turn the ignition on, then reconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.
3. With the scan tool, read the active ORC DTCs.
  Does the scan tool display: B1C3A-1st ROW DRIVER RETRACTOR TENSIONER CIRCUIT OPEN?

  Yes
  - Go to step 3
  No
  - Replace the Driver Seat Belt Retractor Tensioner in accordance with the Service Information.
  - Perform the RESTRAINTS SYSTEM VERIFICATION TEST. See DTC-Based Diagnostics/CONTROLLER, Occupant Restraint (ORC) - Standard Procedure .
CHECK (R505) DRIVER SEAT BELT RETRACTOR TENSIONER LINE 1 CIRCUIT FOR AN OPEN

Fig 3: Checking Driver Seat Belt Retractor Tensioner Line 1 Circuit For An Open
Courtesy of CHRYSLER LLC

WARNING: Turn the ignition off, disconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.
1. Disconnect the SRS Load Tool Kit 8443A and the SRS Load Tool Jumper 8443-8 (domestic) or 8443-20 (export) from the Driver Seat Belt Retractor Tensioner connector.
2. Disconnect the ORC connectors.

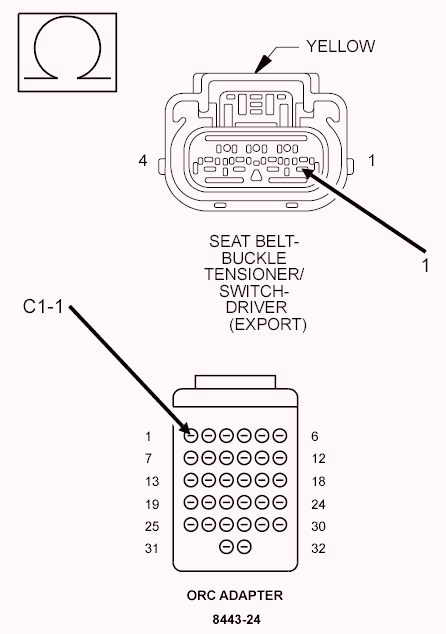

  Fig 4: Measuring Resistance Of Driver Seat Belt Retractor Tensioner Line Circuit
  Courtesy of CHRYSLER LLC

  NOTE: Check connectors - Clean and repair as necessary.
3. Connect the SRS Load Tool Adapter 8443-24 to the ORC connectors.
4. Measure the resistance of the (R505) Driver Seat Belt Retractor Tensioner Line 1 circuit between the Driver Seat Belt Retractor Tensioner connector and the SRS Load Tool Adapter 8443-24.
  Is the resistance below 1.0 Ohm?

  Yes
  - Go to step 4
  No
  - Repair or replace the (R505) Driver Seat Belt Retractor Tensioner Line 1 circuit in accordance with the Service Information. Then Go To 4
CHECK (R503) DRIVER SEAT BELT RETRACTOR TENSIONER LINE 2 CIRCUIT FOR AN OPEN

Fig 5: Checking Driver Seat Belt Retractor Tensioner Line 2 Circuit For An Open
Courtesy of CHRYSLER LLC
1. Measure the resistance of the (R503) Driver Seat Belt Retractor Tensioner Line 2 circuit between the Driver Seat Belt Retractor Tensioner connector and the SRS Load Tool Adapter 8443-24.

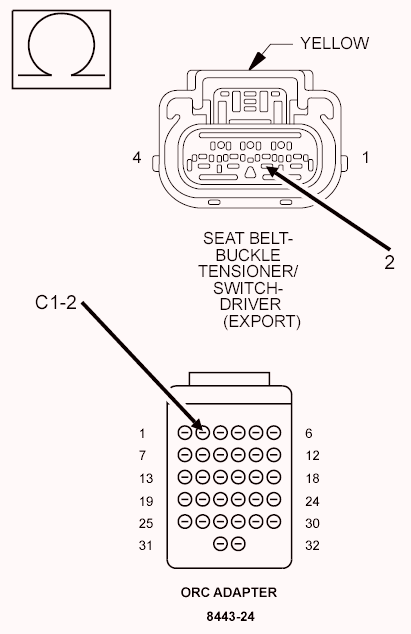

  Fig 6: Measuring Resistance Of Driver Seat Belt Retractor Tensioner Line 2 Circuit
  Courtesy of CHRYSLER LLC

  Is the resistance below 1.0 Ohm?

  Yes
  - Replace the ORC in accordance with Service Information.
  - Perform the RESTRAINTS SYSTEM VERIFICATION TEST. See DTC-Based Diagnostics/CONTROLLER, Occupant Restraint (ORC) - Standard Procedure .
  No
  - Repair or replace the (R503) Driver Seat Belt Retractor Tensioner Line 2 circuit for an open in accordance with the Service Information.
  - Perform the RESTRAINTS SYSTEM VERIFICATION TEST. See DTC-Based Diagnostics/CONTROLLER, Occupant Restraint (ORC) - Standard Procedure .
STORED ORC DTC
1. With the scan tool, record and erase all DTCs from all Airbag System Modules.
2. If any ACTIVE codes are present they must be resolved before diagnosing any stored codes.
  WARNING: Turn the ignition off, disconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.
3. Using the wiring diagram/schematic as a guide, inspect the wiring and connectors.
4. Look for chafed, pierced, pinched, or partially broken wires and broken, bent, pushed out, spread, corroded, or contaminated terminals.
5. The following additional checks may assist you in identifying a possible intermittent problem.
6. Reconnect any disconnected components and harness connector.
  WARNING: Turn the ignition on, then reconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.
7. With the scan tool monitor active codes as you work through the following steps.
  WARNING: Maintain a safe distance from all airbags while performing the following steps. Failure to follow these instructions may result in possible serious or fatal injury.
8. Wiggle the wiring harness and connectors of the related airbag circuit or component.
9. If codes are related to the Driver Airbag circuits, rotate the steering wheel from stop to stop.
10. If only stored codes return continue the test until the problem area has been isolated.
11. In the previous steps you have attempted to recreate the conditions responsible for setting active DTC in question.
  Are any ACTIVE DTCs present?

  Yes
  - Select the appropriate diagnostic procedure. Refer to DIAGNOSTIC CODE INDEX .
  No
  - No problem found at this time. Erase all codes before returning vehicle to customer.
