Diagnostic Test

WARNING: This page is about a different car, the 2010 Dodge Charger and 2010 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

DETERMINE ACTIVE OR STORED DTC
NOTE: Ensure the battery is fully charged.

NOTE: The scan tool, SRS Load Tool Kit 8443A, and DVOM are required to perform the following test.
1. Select Active or Stored DTC.
  Is the DTC active or stored?

  ORC - ACTIVE DTC
  - Go to step 2
  ORC - STORED DTC
  - Perform the RESTRAINTS SYSTEM INTERMITTENT TEST. See DTC-Based Diagnostics/CONTROLLER, Occupant Restraint (ORC) - Standard Procedure .
CHECK FOR OPEN SQUIB CIRCUITS IN DRIVER AIRBAG

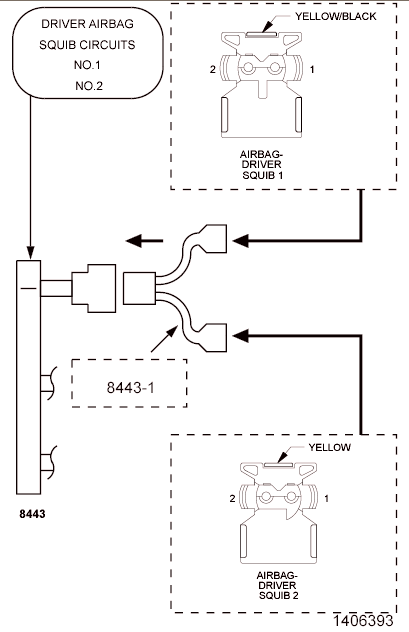

Fig 1: Checking For Shorted Squib Circuits In Driver Airbag
Courtesy of CHRYSLER LLC

WARNING: Turn the ignition off, disconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.
1. Disconnect the Driver Airbag Squib connectors.
  WARNING: Do not place an intact undeployed airbag face down on a hard surface, the airbag will propel into the air if accidentally deployed. Failure to follow these instructions may result in possible serious or fatal injury.

  NOTE: Check the connectors - Clean and repair as necessary.
2. Connect the SRS Load Tool Kit 8443A and SRS Load Tool Jumper 8443-1 to the Driver Airbag Squib connectors.
  WARNING: Turn the ignition on, then reconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.
3. With the scan tool, read the active ORC DTC's.
  Does the scan tool display: B1B06-DRIVER AIRBAG SQUIB 2 CIRCUIT OPEN?

  Yes
  - Go to step 3
  No
  - Replace the Driver Airbag in accordance with the Service Information.
  - Perform the RESTRAINTS SYSTEM VERIFICATION TEST. See DTC-Based Diagnostics/CONTROLLER, Occupant Restraint (ORC) - Standard Procedure .
CHECK CLOCKSPRING SQUIB CIRCUITS FOR AN OPEN

Fig 2: Checking Clockspring Squib Circuits For A Short To Ground
Courtesy of CHRYSLER LLC

WARNING: Turn the ignition off, disconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.
1. Disconnect the SRS Load Tool Kit 8443A and SRS Load Tool Jumper 8443-13 from the Driver Airbag Squib connectors.
2. Remove the Steering Control Module from the steering column in accordance with the Service Information.
3. Disconnect the Steering Control Module connector.
  NOTE: Check the connectors - Clean and repair as necessary.
4. With the Steering Control Module connector attached to the steering column, connect the SRS Load Tool Kit 8443A and SRS Load Tool Jumper 8443-13 to the Steering Control Module C1 connector.
  WARNING: Turn the ignition on, then reconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.
5. With the scan tool, read the active ORC DTC's.
  Does the scan tool display: B1B06-DRIVER AIRBAG SQUIB 2 CIRCUIT OPEN?

  Yes
  - Go to step 4
  No
  - Replace the Clockspring in accordance with the Service Information.
  - Perform the RESTRAINTS SYSTEM VERIFICATION TEST. See DTC-Based Diagnostics/CONTROLLER, Occupant Restraint (ORC) - Standard Procedure .
CHECK (R63) DRIVER SQUIB 2 LINE 1 CIRCUIT AND (R61) DRIVER SQUIB 2 LINE 2 CIRCUIT FOR AN OPEN

Fig 3: Checking Driver Squib 2 Line Circuits For An Open
Courtesy of CHRYSLER LLC

WARNING: Turn the ignition off, disconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.
1. Disconnect the SRS Load Tool Kit 8443A and Jumper from the Steering Control Module connector.
2. Disconnect the ORC connectors.
  NOTE: Check the connectors - Clean and repair as necessary.
3. Connect the SRS Load Tool Adapter 8443-24 to the ORC C2 connector.

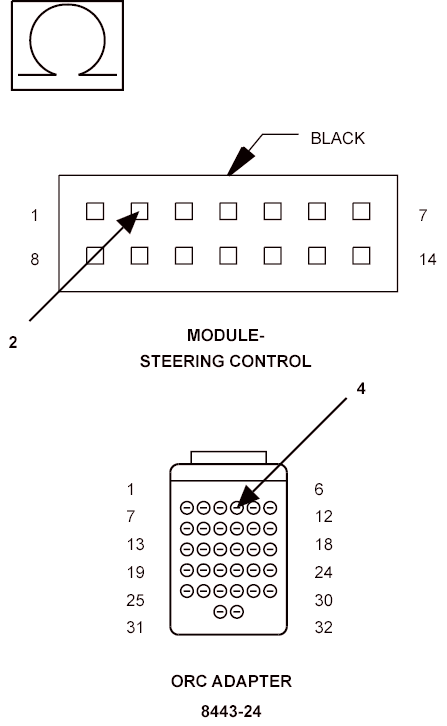

4. Measure the resistance of the (R63) Driver Squib 2 Line 1 circuit between the Steering Control Module C1 connector and the SRS Load Tool Adapter 8443-24.
  Is the resistance below 1.0 ohm?

  Yes
  - Go to step 5
  No
  - Repair the (R63) Driver Squib 2 Line 1 circuit for an open. Then, Go To step 5
  - Perform the RESTRAINTS SYSTEM VERIFICATION TEST. See DTC-Based Diagnostics/CONTROLLER, Occupant Restraint (ORC) - Standard Procedure .
CHECK (R61) DRIVER SQUIB 2 LINE 2 CIRCUIT FOR AN OPEN

Fig 4: Checking Driver Squib 2 Line 2 Circuit For An Open
Courtesy of CHRYSLER LLC
1. Measure the resistance of the (R61) Driver Squib 2 Line 2 circuit between the Steering Control Module C1 connector and the SRS Load Tool Adapter 8443-24.
  Is the resistance below 1.0 ohm?

  Yes
  - Replace the ORC in accordance with the Service Information.
  - Perform the RESTRAINTS SYSTEM VERIFICATION TEST. See DTC-Based Diagnostics/CONTROLLER, Occupant Restraint (ORC) - Standard Procedure .
  No
  - Repair the (R61) Driver Squib 2 Line 2 circuit for an open.
  - Perform the RESTRAINTS SYSTEM VERIFICATION TEST. See DTC-Based Diagnostics/CONTROLLER, Occupant Restraint (ORC) - Standard Procedure .
