Front Suspension
WARNING: This page is about a different car, the 2010 Dodge Charger and 2010 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.
The front suspension for both All-Wheel-Drive (AWD) and Rear-Wheel-Drive (RWD) vehicles is a long and short arm design.

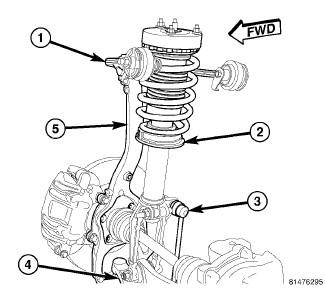

Fig 1: Identifying Upper Control Arm, Stabilizer Bar & Link, Shock Assembly, Lower Control Arm & Knuckle
Each side of the AWD front suspension includes the following components:
- Hub And Bearing
- Knuckle (5)
- Lower Control Arm (4)
- Shock Assembly (2)
- Stabilizer Bar and Link (3)
- Upper Control Arm (1)

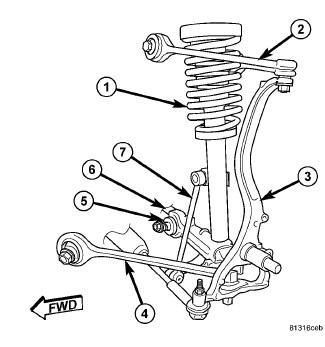

Fig 2: Identifying Knuckle, Lower Control Arm, Shock Assembly, Stabilizer Bar, Link, Tension Strut & Upper Control Arm
Each side of the RWD front suspension includes the following components:
- Hub And Bearing
- Knuckle (3)
- Lower Control Arm (5)
- Shock Assembly (1)
- Stabilizer Bar (6) and Link (7)
- Tension Strut (4)
- Upper Control Arm (2)
