Fluid Fill
WARNING: This page is about a different car, the 2010 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
The 175MM FIA Front Axle assembly is designed for 'fill for life' and is not manufactured with a fluid drain plug.
- Raise and support vehicle. Refer to Vehicle Quick Reference/Hoisting - Standard Procedure

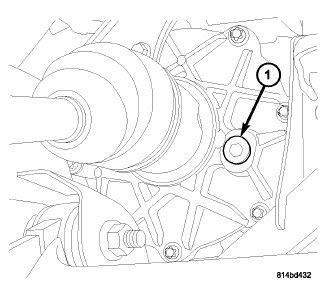

- Remove axle fill plug (1) .
- Fill axle with 600ml (0.64 qts.) of Mopar® 75W-90 Synthetic Gear Lubricant. Fluid should be within 3/16" of bottom of fill hole.
