Pinion Depth Measurement

WARNING: This page is about a different car, the 2010 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

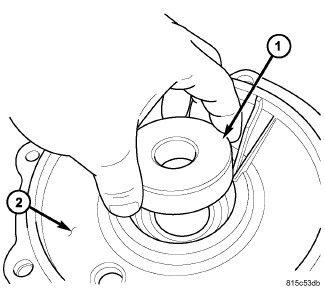

Fig 1: Arbor Disc 9681-4

Courtesy of CHRYSLER LLC

Install arbor disc 9681-4 (1) into differential cover (2).

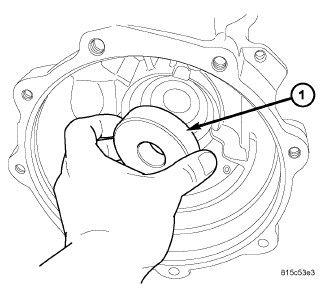

Fig 2: Arbor Disc 9681-5
Courtesy of CHRYSLER LLC
Install arbor disc 9681-5 (1) into differential case.

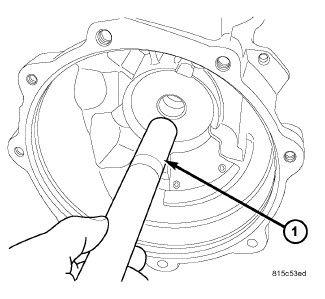

Fig 3: Arbor Bar D-115-3
Courtesy of CHRYSLER LLC
Install arbor bar D-115-3 (1) into arbor disc 9681-5.

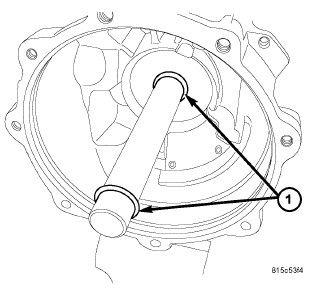

Fig 4: Space O-Rings as Shown
Courtesy of CHRYSLER LLC
Install O-rings (1) on arbor bar D-115-3.

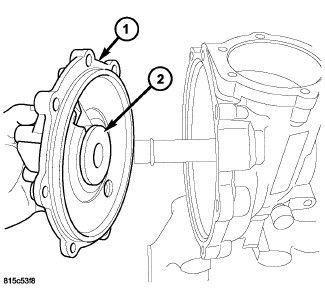

Fig 5: Install Cover to Housing
Courtesy of CHRYSLER LLC
Install cover (1) to housing.
Install and torque cover-to-housing bolts to:
- M10x40 - 65 N.m (48 ft. lbs.)
- M8x25 - 34 N.m (25 ft. lbs.)

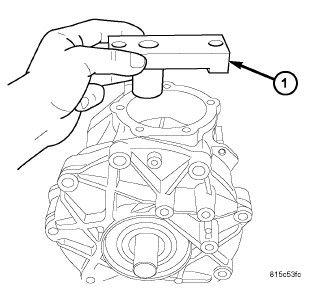

Fig 6: Plate 9681-2
Courtesy of CHRYSLER LLC

NOTE: Make sure gauge plate surfaces are clean to insure an accurate reading
Install gauge plate 9681-2 (1) to pinion opening.

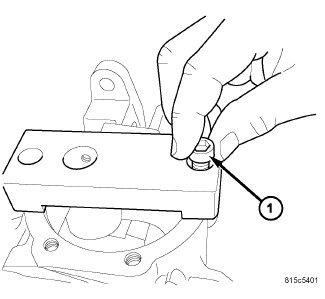

Fig 7: Plate-to-Housing Bolts
Courtesy of CHRYSLER LLC
Install plate-to-housing bolts (1) .

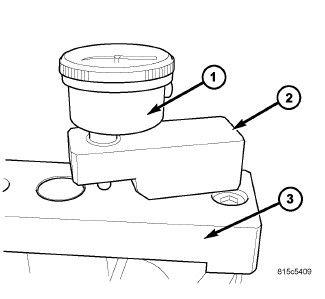

Fig 8: Scooter Block & Dial Indicator On Gauge Plate
Courtesy of CHRYSLER LLC
Install Scooter Block (2) and dial Indicator (1) on gauge plate 9681-2 (3).

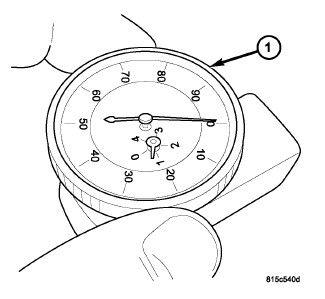

Fig 9: Zero Dial Indicator
Courtesy of CHRYSLER LLC
Zero dial indicator (1) .

Fig 10: Measure Gage Rod Protrusion
Courtesy of CHRYSLER LLC
Take reading (1) with the dial indicator, measure gage rod protrusion.
Record gage rod protrusion reading on the dial indicator. The dial indicator reading represents the amount that this particular assembly deviates from the design height.
