Pinion Assembly Height Measurement
WARNING: This page is about a different car, the 2010 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

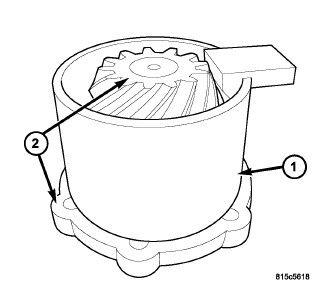

- Install measuring sleeve 9681-1 (1) over pinion assembly (2).
- Install Scooter Block (2) and dial Indicator on (1) measuring sleeve 9681-1(3).
- Record reading on the dial indicator. The dial indicator reading represents the amount that this particular assembly deviates from the design height.
