Differential Side Bearing Preload

WARNING: This page is about a different car, the 2010 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Differential side bearing preload is controlled and adjusted by means of select-thickness shims sandwiched between the side bearing cups and the housing/cover.

NOTE: For accurate results, differential side bearing preload must only be measured when the pinion housing assembly is removed from the axle.

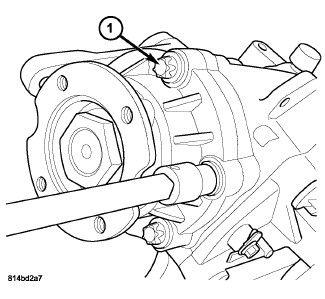

Fig 1: Pinion Housing Bolts

Courtesy of CHRYSLER LLC

Remove pinion housing-to-axle housing bolts (1) .

Fig 2: N PINION DEPTH SHIM
Courtesy of CHRYSLER LLC
Remove pinion housing and depth shim (1) from axle assembly.

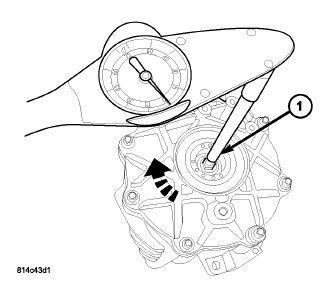

Fig 3: Measure Differential Rotating Torque
Courtesy of CHRYSLER LLC
Install Torque Tool C-4995A (1) to differential housing as shown in illustration. Measure and record differential rotating torque. Differential rotating torque should be within 190-260 N.m (17-23 in. lbs.). If rotating torque is below this range, disassemble housing, measure and install slightly thicker preload shims (1). Add thickness equally to both sides. If rotating torque is above this range, disassemble housing, measure and install slightly thinner preload shims. Remove thickness equally from both sides.

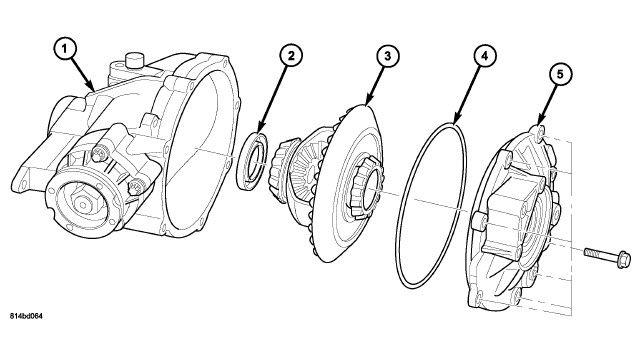

Fig 4: Differential and Seal Removal/Installation
Courtesy of CHRYSLER LLC
Remove axle housing cover (5) and differential assembly (3).

Fig 5: Install Tool 6514
Courtesy of CHRYSLER LLC
Remove differential side bearing cup from axle housing cover. Install Bearing Remover 6514 (1) .

Fig 6: Remove Differential Side Bearing Cup (Cover)
Courtesy of CHRYSLER LLC
Remove differential side bearing cup with Bearing Remover 6514 (1) .

Fig 7: Side Bearing Preload Shim
Courtesy of CHRYSLER LLC
Remove side bearing preload shim (1) .

Fig 8: Measure Side Bearing Preload Shim
Courtesy of CHRYSLER LLC
Measure preload shim (1) to identify for replacement.

Fig 9: Side Bearing Preload Shim
Courtesy of CHRYSLER LLC
Install new differential side bearing preload shim (1) into axle housing cover (2).

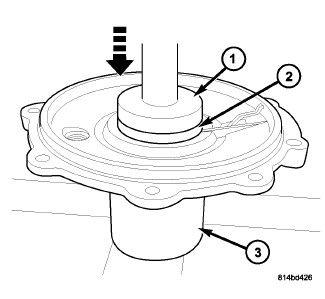

Fig 10: Install Side Bearing Cup (Cover)
Courtesy of CHRYSLER LLC
Using Handle C-4171 and Installer D-129 press new side bearing cup into cover until it bottoms. Use suitable cup (3) to support and protect cover.

Fig 11: Remove Inner Diff Side Bearing Cup
Courtesy of CHRYSLER LLC
Using Remover 9664 (1) and Slide Hammer C-637 (2) , remove differential side bearing (inboard) cup.

Fig 12: Measure Side Bearing Preload Shim
Courtesy of CHRYSLER LLC
Measure preload shim (1) to identify for replacement.
Install new differential side bearing preload shim (1) into axle housing.
Using Handle C-4171 and Installer D-145, press differential side bearing cup into housing until it bottoms.

Fig 13: Differential and Seal Removal/Installation
Courtesy of CHRYSLER LLC
Install differential/ring gear assembly (3) , new cover o-ring seal (4), and cover (5).
Install and torque cover-to-housing bolts to:
- M10x40 - 65 N.m (48 ft. lbs.)
- M8x25 - 34 N.m (25 ft. lbs.)
Fig 14: Measure Differential Rotating Torque
Courtesy of CHRYSLER LLC
Again verify rotating torque measurement (1) . Repeat adjustment procedure until proper rotating torque is obtained.

Fig 15: N PINION DEPTH SHIM
Courtesy of CHRYSLER LLC
Install pinion housing assembly and depth shim (1) . Use new o-ring on housing.

Fig 16: Pinion Housing Bolts
Courtesy of CHRYSLER LLC
Install and torque pinion housing-to-axle housing bolts (1) to 34 N.m (25 ft. lbs.).
