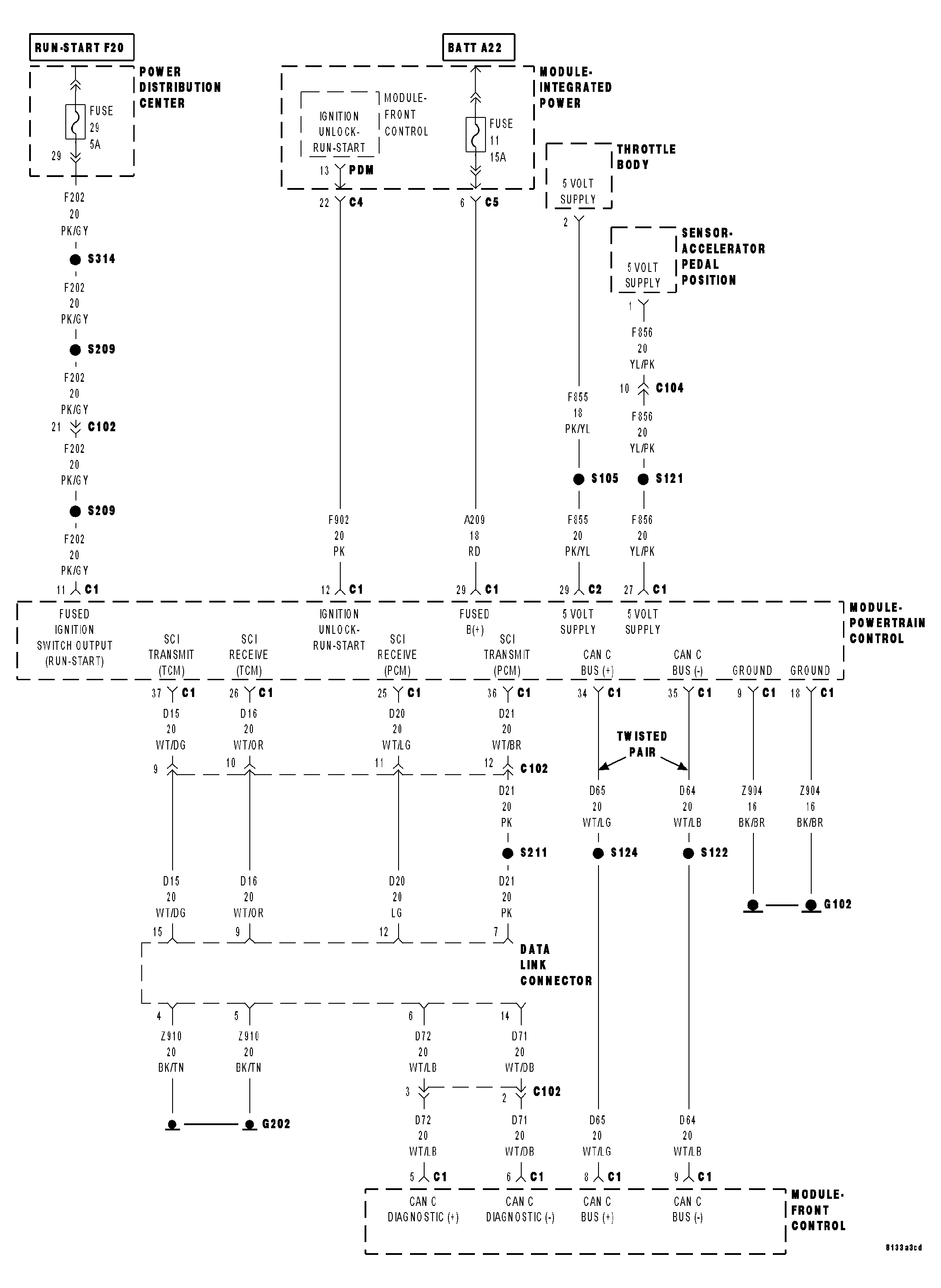

*No Response With A No Start Condition: Notes
WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.
For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article.
| Possible Causes |
|---|
| (K51) ASD CONTROL CIRCUIT SHORTED TO BATTERY VOLTAGE |
| (K51) ASD CONTROL CIRCUIT OPEN |
| (K51) ASD CONTROL CIRCUIT SHORTED TO GROUND |
| (A209) PCM FUSED B+ CIRCUIT |
| (F202) (F902) PCM FUSED IGNITION SWITCH OUTPUT CIRCUITS |
| (Z904) PCM GROUND CIRCUITS |
| (D65) CAN C BUS (+) CIRCUIT OPEN |
| (D64) CAN C BUS (-) CIRCUIT OPEN |
| PCM |
