TENSIONER Pulley Assembly

WARNING: This page is about a different car, the 2010 Dodge Charger and 2010 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

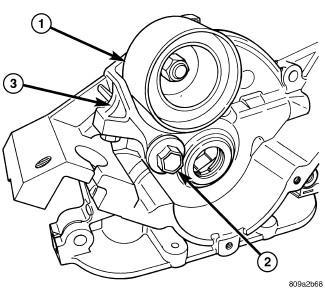

Fig 1: TENSIONER PULLEY
GC0095562Courtesy of CHRYSLER LLC
1 - TENSIONER PULLEY
2 - PIVOT BOLT
3 - TENSIONER BRACKET
  1. Install the timing belt tensioner pulley (1) assembly. Tighten the pivot bolt (2) to 61 N.m (45 ft. lbs.).
  2. Install the timing belt. See Engine/Valve Timing/BELT and SPROCKETS, Timing - Installation .
