Crankshaft Sprocket

WARNING: This page is about a different car, the 2010 Dodge Charger and 2010 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

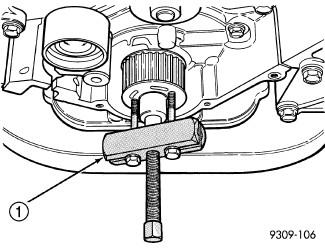

Fig 1: Crankshaft Sprocket - Removal
GC0095546Courtesy of CHRYSLER LLC
1 - SPECIAL TOOL L-4407A
  1. Remove the timing belt. See Engine/Valve Timing/BELT and SPROCKETS, Timing - Removal .
  2. Remove crankshaft sprocket using Special Tool L-4407A (1) .
