Section 319 (3.5L Engine (Service Information)): Removal: Removal

WARNING: This page is about a different car, the 2010 Dodge Charger and 2010 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

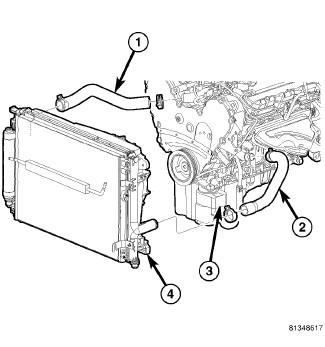

Fig 1: RADIATOR HOSES

Courtesy of CHRYSLER LLC

1 - UPPER RADIATOR HOSE

2 - LOWER RADIATOR HOSE

3 - ENGINE OIL COOLER

4 - COOLANT MODULE

NOTE: Capture and store any residual fluid drainage, or leakage from ancillary components, in the appropriately marked containers.

Perform the fuel pressure release procedure. Refer to Fuel System/Fuel Delivery - Standard Procedure .
Center and secure the steering wheel.
Disconnect negative battery cable.
Evacuate the air conditioning system. Refer to Heating and Air Conditioning/Plumbing - Standard Procedure .
Remove the hood.
Remove the windshield cowl assembly.
Raise and support the vehicle.
Remove the lower engine close out panel.
Drain the cooling system. Refer to Cooling - Standard Procedure .

Disconnect the lower radiator hose (2) .

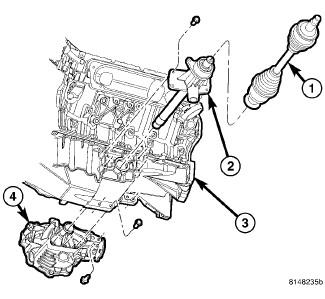

Fig 2: FRONT DRIVE AXLE ASSEMBLY

Courtesy of CHRYSLER LLC

1 - LEFT FRONT DRIVE AXLE

2 - INTERMEDIATE SHAFT

3 - OIL PAN

4 - FRONT DRIVE AXLE HOUSING

Remove the front drive axles and housing (if equipped with AWD) .

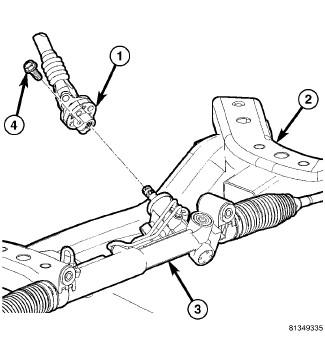

Fig 3: Steering Coupler

Courtesy of CHRYSLER LLC

1 - STEERING COUPLER

2 - CRADLE

3 - STEERING GEAR

4 - BOLT

Disconnect the generator electrical connectors. Refer to Electrical/Charging/GENERATOR - Removal .

Separate the steering column coupling (1) from the steering gear (3) .

Fig 4: RADIATOR HOSES

Courtesy of CHRYSLER LLC

1 - UPPER RADIATOR HOSE

2 - LOWER RADIATOR HOSE

3 - ENGINE OIL COOLER

4 - COOLANT MODULE

Remove the starter and spacer plate. Refer to Electrical/Starting/STARTER - Removal .
Disconnect the oil cooler hose at the oil cooler (3) and remove the cooler hose retainer at the transmission .

Disconnect the transmission line bracket at the A/C compressor and allow the bolt to rest on the cradle.

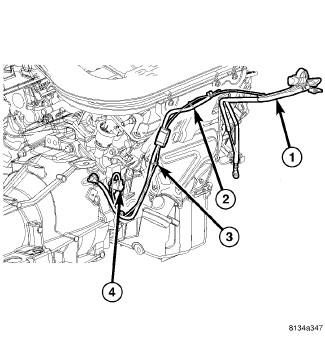

Fig 5: ENGINE BLOCK HEATER

Courtesy of CHRYSLER LLC

1 - NEGATIVE BATTERY CABLE

2 - NEGATIVE BATTERY CABLE

3 - BLOCK HEATER HARNESS

4 - ENGINE BLOCK HEATER

Disconnect the ground strap (3) at the right transmission housing .
Disconnect the engine block heater wiring connector (4) and set aside (if equipped) .
Remove the crankshaft position sensor. Refer to Fuel System/Fuel Injection/SENSOR, Crankshaft Position - Removal .

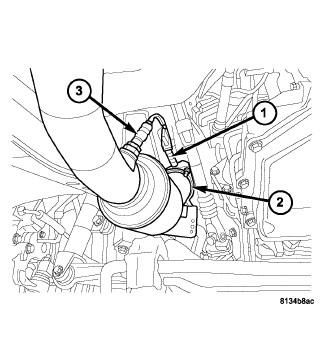

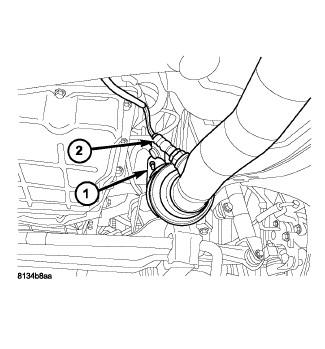

Fig 6: LEFT EXHAUST PIPE TO MANIFOLD UNION
Courtesy of CHRYSLER LLC

1 - HO2S #1

2 - EXHAUST UNION

3 - HO2S-#2
Disconnect the left #2 oxygen senor (3) electrical connector and separate the exhaust manifold from the left exhaust pipe (2) .

Fig 7: RIGHT EXHAUST PIPE TO MANIFOLD UNION
Courtesy of CHRYSLER LLC

1 - EXHAUST UNION

2 - HO2S - #2

Disconnect the right #2 oxygen senor (2) electrical connector and separate the exhaust manifold from the right exhaust pipe (1) .

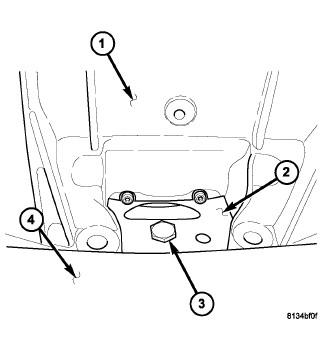

Fig 8: FLYWHEEL BOLTS

Courtesy of CHRYSLER LLC

1 - OIL PAN

2 - FLYWHEEL

3 - BOLT

4 - CRADLE

Remove the flex plate inspection cover and torque converter bolts (3) .

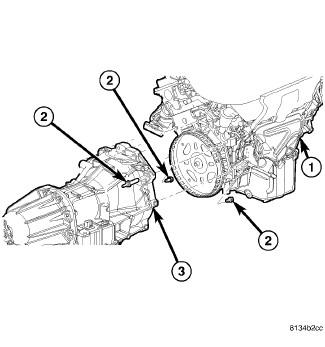

Fig 9: Remove/Install Transmission
Courtesy of CHRYSLER LLC

1 - ENGINE

2 - BOLTS

3 - TRANSMISSION
Remove the transmission housing to engine mounting bolts (2) accessible .

Remove the engine mounting to cradle fasteners.

Fig 10: COOLANT PIPE

Courtesy of CHRYSLER LLC

1 - COOLANT PIPE

2 - HEATER HOSE

3 - COOLANT RESERVOIR HOSE

Lower the vehicle.
Remove the upper intake manifold. See Engine/Manifolds/MANIFOLD, Intake - Removal .

Disconnect the heater hose (2) and coolant reservoir hose (3) from the rear coolant pipe (1) .

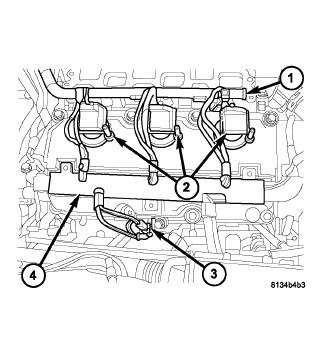

Fig 11: IGNITION COILS - LEFT CYLINDER HEAD

Courtesy of CHRYSLER LLC

1 - FUEL RAIL

2 - IGNITION COILS

3 - WIRING HARNESS

4 - LOWER INTAKE MANIFOLD

Disconnect the oxygen sensor connector and the ground wire on the left cylinder head cover.
Disconnect the coolant temperature, cam position, oil pressure sensor electrical connectors.

Disconnect the left ignition coil (2) and fuel injector harness connectors and position the wiring harness (3) aside .

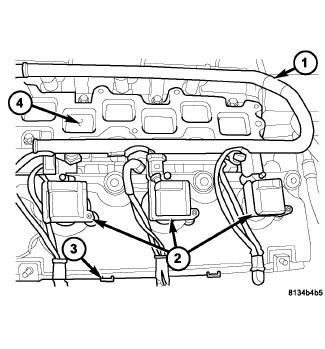

Fig 12: IGNITION COILS - RIGHT CYLINDER HEAD

Courtesy of CHRYSLER LLC

1 - FUEL RAIL

2 - IGNITION COIL

3 - CAPACITOR

4 - ENGINE WIRING HARNESS

Remove the right intake manifold support braces.
Disconnect the capacitor and ground strap from the right cylinder head cover .
Disconnect the oxygen sensor, knock, EGR, injector and ignition coil harness connectors and position the wiring harness aside .

Disconnect the engine wiring harness from the transmission housing and remove the remaining transmission housing bolts.

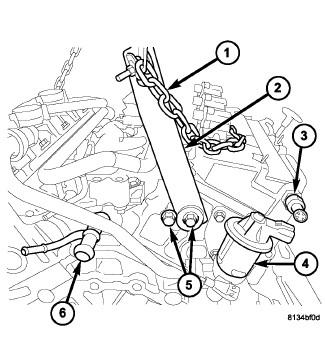

Fig 13: ENGINE LIFTING BRACKET #8534

Courtesy of CHRYSLER LLC

1 - LIFTING CHAIN

2 - ENGINE LIFTING BRACKET #8534

3 - CAM POSITION SENSOR

4 - EGR VALVE

5 - BOLTS

6 - COOLANT PIPE

Connect the engine lifting bracket (2) from special tool kit 8534B to the right rear of the cylinder head outer most bolt access hole (5) .

Install a bolt into the inner most bolt access hole (5) next to the engine lift bracket to assure lifting bracket positioning.

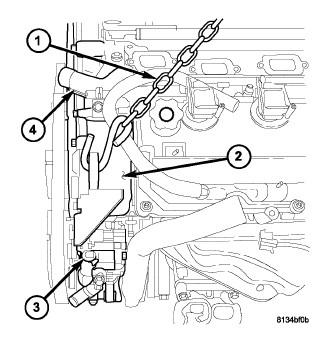

Fig 14: ENGINE LIFTING POINT

Courtesy of CHRYSLER LLC

1 - LIFTING CHAIN

2 - UPPER TIMING CHAIN COVER

3 - POWER STEERING PUMP

4 - THERMOSTAT HOUSING

Connect a engine hoisting chain (1) to the left timing chain cover (2) engine lifting point and engine lift bracket .
CAUTION: While slowly separating the engine from the vehicle, constant checks must be made to assure proper positioning and that no damage to other components or wiring harnesses occur during separation.

NOTE: As the engine is hoisted from the engine bay area, remove the loosened A/C compressor bolt retaining the transmission cooler lines and direct the lines aside.
Carefully remove the engine from the engine bay area.
