Lower Intake Manifold

WARNING: This page is about a different car, the 2010 Dodge Charger and 2010 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

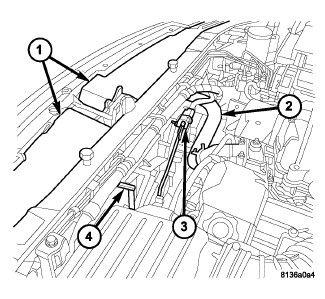

Fig 1: RADIATOR FAN ASSEMBLY

Courtesy of CHRYSLER LLC

1 - UPPER RADIATOR CLOSURE PANELS

2 - UPPER RADIATOR HOSE

3 - RADIATOR FAN ELECTRICAL CONNECTOR

4 - RADIATOR FAN ASSEMBLY

Disconnect and isolate the negative battery cable.
Perform the fuel pressure release procedure. Refer to Fuel System/Fuel Delivery - Standard Procedure .
Drain the cooling system. Refer to Cooling - Standard Procedure .
Disconnect the upper radiator hose (2) from the thermostat housing.

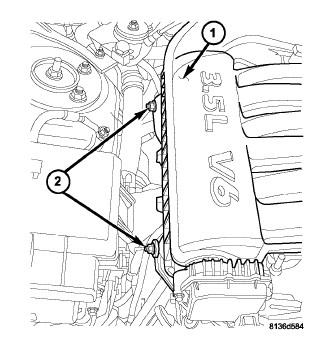

Fig 2: INTAKE MANIFOLD BRACES
Courtesy of CHRYSLER LLC

1 - INTAKE MANIFOLD

2 - PENCIL BRACKETS

Remove the upper intake manifold (1). See Engine/Manifolds/MANIFOLD, Intake - Removal .

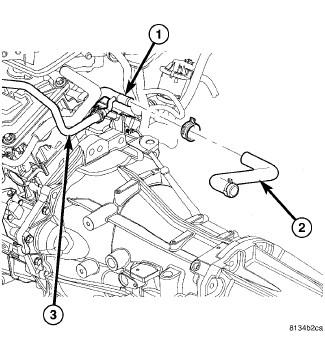

Fig 3: COOLANT PIPE

Courtesy of CHRYSLER LLC

1 - COOLANT PIPE

2 - HEATER HOSE

3 - COOLANT RESERVOIR HOSE

Disconnect the heater hose (2) from the coolant pipe (1).

Disconnect the coolant container hose (3) from the coolant pipe (1).

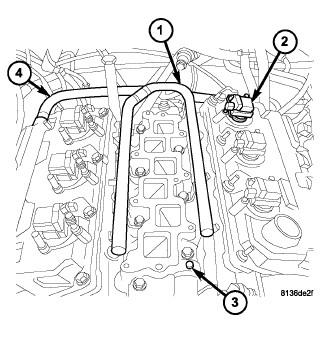

Fig 4: FUEL RAIL AND LOWER INTAKE MANIFOLD

Courtesy of CHRYSLER LLC

1 - FUEL RAIL

2 - IGNITION COIL

3 - LOWER INTAKE MANIFOLD

4 - PCV VALVE

Disconnect the electrical connectors from the fuel injectors and the coolant temperature sensor.
Disconnect the fuel supply hose from the fuel rail (1). Refer to Fuel System/Fuel Delivery/FITTING, Quick Connect - Standard Procedure .
Remove the bolts attaching the fuel rail (1).
Remove the fuel rail and injectors as an assembly.

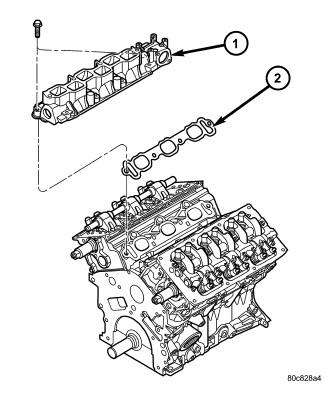

Fig 5: Lower Intake Manifold
Courtesy of CHRYSLER LLC

1 - LOWER INTAKE MANIFOLD

2 - GASKET
Remove the bolts attaching the lower intake manifold and remove the intake manifold (1).
