PAN, Oil: Installation: RWD

WARNING: This page is about a different car, the 2010 Dodge Charger and 2010 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: OIL PAN SEALING - TYPICAL
GC0081736Courtesy of CHRYSLER LLC
  1. Clean the oil pan and all gasket surfaces.
  2. Apply a 1/8 inch bead of Mopar® Engine RTV GEN II at the parting line of the oil pump housing and the rear seal retainer.

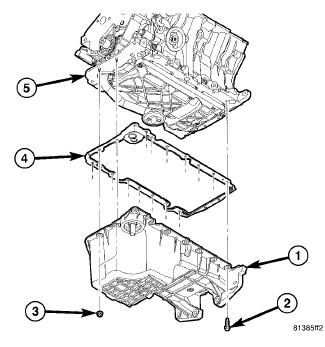

    Fig 2: OIL PAN AND GASKET
    GC0081735Courtesy of CHRYSLER LLC
    1 - OIL PAN
    2 - BOLT
    3 - FASTENER
    4 - GASKET
    5 - ENGINE BLOCK
  3. Install the oil pan gasket (4) to the engine block (5).
  4. Install the oil pan (1) and attaching fasteners (2) and (3) finger tight.
    Fig 3: Removing/Installing Engine Oil Pan To Transmission Bolts - 3.5L
    GC0095543Courtesy of CHRYSLER LLC
    NOTE: Assure that the rear face of the oil pan is flush to the transmission bell housing when installing the oil pan.
  5. Install and pre-tighten four M10 horizontal rear oil pan to transmission bolts (1) to 1.4 N.m (12 in. lbs.).

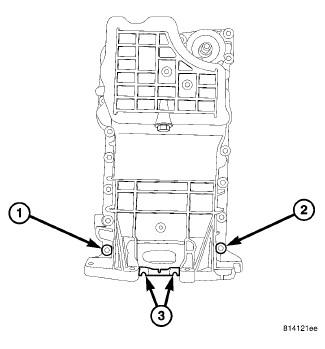

    Fig 4: OIL PAN ALIGNMENT
    GC0081737Courtesy of CHRYSLER LLC
    1 - TIGHTEN FIRST
    2 - TIGHTEN SECOND
    3 - TIGHTEN LAST
  6. First tighten the M8 (1) oil pan alignment bolt to 28 N.m (250 in. lbs.), then tighten bolt (2) to 28 N.m (250 in. lbs.).
  7. Tighten the remaining M8 bolts and M8 nuts to 28 N.m (250 in. lbs.) and the M6 bolts (3) to 12 N.m (105 in. lbs.).
  8. Tighten the four previously installed horizontal M10 oil pan to transmission bolts to 55 N.m (40 ft. lbs.).
    Fig 5: FLEX PLATE COVER
    GC0081733Courtesy of CHRYSLER LLC
  9. Install the flex plate inspection cover (1) and tighten the fastener (2) to 11 N.m (97 in. lbs.).
    Fig 6: STEERING COUPLING
    GC0080527Courtesy of CHRYSLER LLC
  10. Install the steering gear to cradle bolts and tighten the fasteners to 95 N.m (70 ft. lbs.).
    CAUTION: Prior to coupling installation, make sure gear is centered in its travel to match clockspring centering in steering column.
  11. Align the coupling (2) with the input shaft (3) and install the steering coupling. Install a new pinch bolt (1). Tighten the bolt to 54 N.m (40 ft. lbs.).
    Fig 7: Oil Cooler & Hoses
    GC0081731Courtesy of CHRYSLER LLC
  12. Install the oil cooler and attaching fastener (if equipped) and tighten to 61 N.m (45 ft. lbs.). See Engine/Lubrication/COOLER, Oil - Installation .
  13. Install the engine oil filter (3). Tighten filter to 12 N.m (106 in. lbs.).
  14. Install the belly pan. Refer to Frame and Bumpers/Under Body Protection/BELLY PAN - Installation .
    Fig 8: Engine Oil Level Indicator Tube Retaining Bolt And Indicator Tube
    GC0095539Courtesy of CHRYSLER LLC
  15. Lower the vehicle.
  16. Install the engine oil level indicator tube (2) and tighten the retaining bolt (1) to 12 N.m (105 in. lbs.).
    Fig 9: GENERATOR 3.5L
    GC0080020Courtesy of CHRYSLER LLC
  17. Position the generator bracket (4) and install the bracket bolt (3). Tighten the generator mounting bolt (2) to 65 N.m (48 ft. lbs.) and tighten the generator bracket bolt (3) to 54 N.m (40 ft. lbs.).
  18. Fill the engine crankcase with the proper oil to the correct level. Refer to Vehicle Quick Reference/Capacities and Recommended Fluids - Specifications .
  19. Reconnect the negative battery cable.
