INSULATOR, Engine Mount, Right: Installation: Installation

WARNING: This page is about a different car, the 2010 Dodge Charger and 2010 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

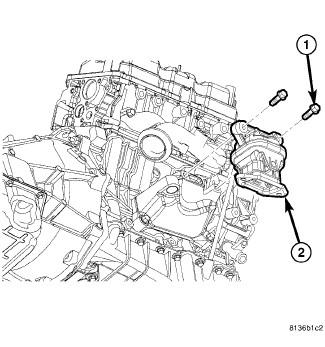

Fig 1: RIGHT ENGINE MOUNT
GC0095537Courtesy of CHRYSLER LLC
  1. Install the right engine mount (2) to the engine mounting bracket and hand tighten the bolts (1).
  2. Install and hand tighten the engine mount through studs.
  3. Tighten the engine mount to mounting bracket bolts to 75 N.m (55 ft. lbs.).
  4. Lower the engine and remove the lifting device.
  5. Tighten the engine mount through studs to 12 N.m (106 in. lbs.).

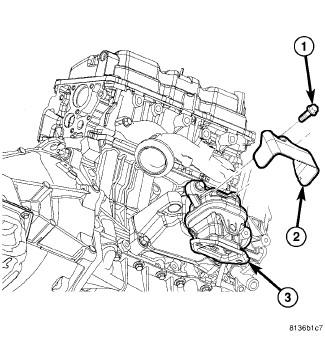

    Fig 2: RIGHT ENGINE MOUNT HEAT SHIELD
    GC0095536Courtesy of CHRYSLER LLC
  6. Install the engine mount heat shield (2) and bolts (1). Tighten bolts to 11 N.m (97 in. lbs.).
  7. Install the right engine mount to cradle nuts and tighten to 75 N.m (55 ft. lbs.).

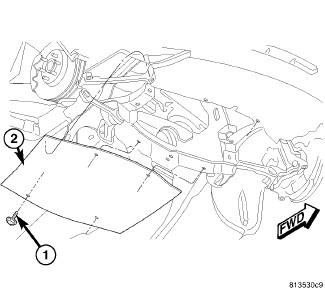

    Fig 3: REAR BELLY PAN
    GC0080680Courtesy of CHRYSLER LLC
  8. Position the rear belly pan (2) to the underside of the vehicle.
  9. Install the fasteners (1) that secure the rear belly pan to the underside of the vehicle.
  10. Lower the vehicle.
  11. Connect the negative battery cable.
