Engine Block: FLEXPLATE: Removal: Removal

WARNING: This page is about a different car, the 2010 Dodge Charger and 2010 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

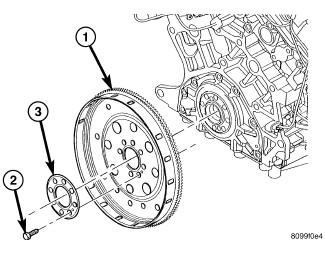

Fig 1: FLEX PLATE
GC0095528Courtesy of CHRYSLER LLC
1 - FLEX PLATE
2 - BOLT (QTY. 8)
3 - BACKING PLATE
  1. Remove the transmission. Refer to Transmission and Transfer Case/Automatic - 42RLE - Removal or Transmission and Transfer Case/Automatic - NAG1 - Removal .
  2. Remove the flex plate attaching bolts (2).
  3. Remove the flex plate (1) and backing plate (3).
