Section 319 (3.5L Engine (Service Information)): Description: 3.5L

WARNING: This page is about a different car, the 2010 Dodge Charger and 2010 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

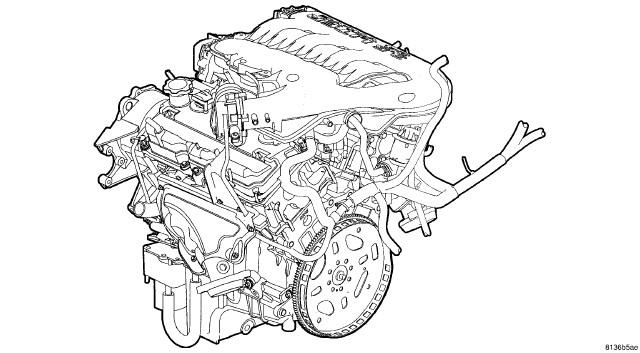

Fig 1: 3.5L ENGINE

Courtesy of CHRYSLER LLC

The 3.5 Liter (214 Cubic Inches) 60°V-6 engine is a single overhead camshaft design with hydraulic lifters and four valves per cylinder. The engine does not have provisions for a free wheeling valve train.

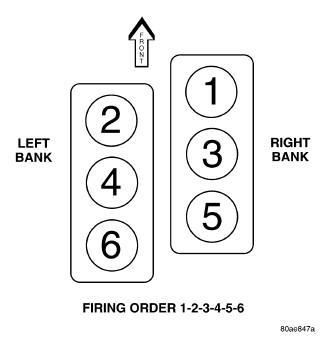

Fig 2: Cylinder Numbering and Firing Order

Courtesy of CHRYSLER LLC

The cylinders are numbered from front to rear, with the right bank odd numbered, and the left bank even numbered. The firing order is 1-2-3-4-5-6.

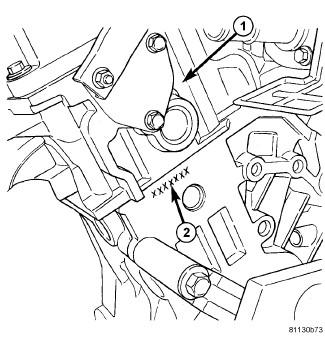

Fig 3: ENGINE IDENTIFICATION

Courtesy of CHRYSLER LLC

1 - REAR OF LEFT CYLINDER HEAD

2 - ENGINE IDENTIFICATION NUMBER

The engine identification number (2) is located on the rear of engine block just below the left cylinder head (1).
