Valve Guides

WARNING: This page is about a different car, the 2010 Dodge Charger and 2010 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

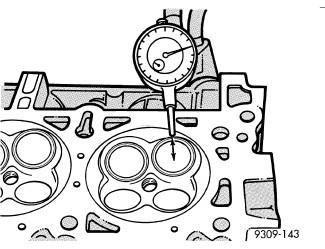

Fig 1: Measuring Valve Guide Wear
GC0095513Courtesy of CHRYSLER LLC
  1. Measure valve stem-to-guide clearance as follows:
  2. Install valve into cylinder head so it is 15 mm (0.590 inch.) off the valve seat. A small piece of hose may be used to hold valve in place.
  3. Attach dial indicator Tool C-3339A to cylinder head and set it at right angle of valve stem being measured .
  4. Move valve to and from the indicator.
  5. Note dial indicator reading and compare to engine specifications. See Engine - Specifications .
    NOTE: Replace cylinder head if stem-to-guide clearance exceeds specifications, or if guide is loose in cylinder head.
