TUBE, Spark Plug: Removal: Removal

WARNING: This page is about a different car, the 2010 Dodge Charger and 2010 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

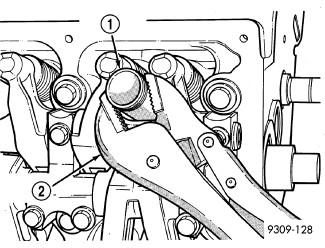

Fig 1: Servicing Spark Plug Tubes
GC0095507Courtesy of CHRYSLER LLC
1 - SPARK PLUG TUBE
2 - LOCKING PLIERS
  1. Remove cylinder head cover(s). See Engine/Cylinder Head/COVER(S), Cylinder Head - Removal .
  2. Using suitable locking pliers, remove the tube from the cylinder head and discard tube.
  3. Clean area around spark plug with Mopar® Parts Cleaner or equivalent.
