Exhaust Manifold

WARNING: This page is about a different car, the 2010 Dodge Charger and 2010 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect negative battery cable.
  2. Raise vehicle.

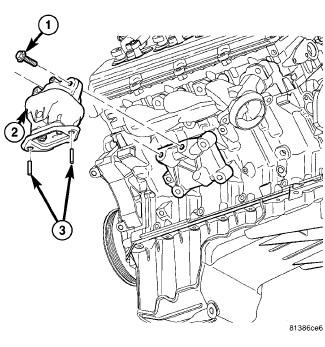

    Fig 1: ENGINE HYDROMOUNT LH
    GC0081790Courtesy of CHRYSLER LLC
    1 - Bolt
    2 - Hydromount
    3 - Studs
  3. For left hand manifold, remove exhaust pipe to manifold bolts.
  4. Remove engine mount to frame fasteners (3).
    Fig 2: ENGINE HYDROMOUNT RH
    GC0081791Courtesy of CHRYSLER LLC
    1 - Studs
    2 - Nut
    3 - Hydromount
    4 - Studs
  5. For right hand manifold, remove exhaust pipe to manifold bolts.
  6. Remove engine mount to frame fasteners (4).
  7. Using suitable jack, raise engine enough to remove manifolds.
    CAUTION: Do not damage engine harness while raising the engine.
  8. Remove the engine mounts. See Engine/Engine Mounting/INSULATOR, Engine Mount - Removal .
    Fig 3: Exhaust Manifold Bolt Tightening Sequence - Left
    GC0081814Courtesy of CHRYSLER LLC
  9. For the left side manifold, remove heat shield.
  10. Remove manifold bolts using sequence provided.
  11. Remove manifold and gasket.
    Fig 4: Exhaust Manifold Bolt Tightening Sequence - Right
    GC0081815Courtesy of CHRYSLER LLC
  12. For the right side manifold, remove heat shield.
  13. Remove manifold bolts using sequence provided.
  14. Remove manifold and gasket.
