INSULATOR, Engine Mount, Rear: Removal: Removal

WARNING: This page is about a different car, the 2010 Dodge Charger and 2010 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

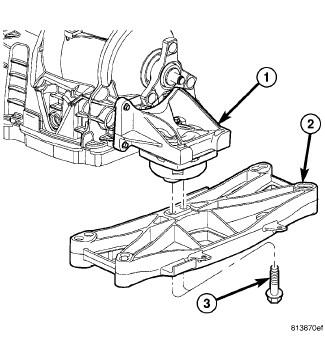

Fig 1: CROSSMEMBER
GC0081796Courtesy of CHRYSLER LLC
1 - Trans Mount Bracket
2 - Crossmember
3 - Bolts
  1. Raise the vehicle on a hoist.
  2. Using a suitable jack, support transmission.
  3. Remove the crossmember (2).

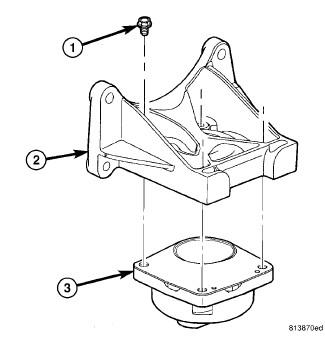

    Fig 2: TRANSMISSION MOUNT
    GC0081797Courtesy of CHRYSLER LLC
    1 - Bolts
    2 - Trans Mount Bracket
    3 - Trans Mount
  4. Remove the fasteners (1) from the transmission mount (3) to crossmember.
  5. Remove the mount (3).

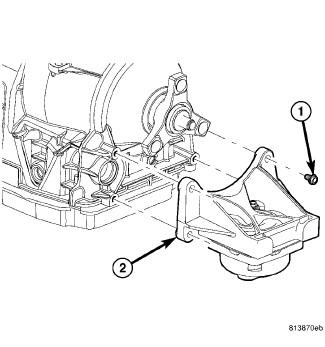

    Fig 3: TRANS MOUNT BRACKET
    GC0081798Courtesy of CHRYSLER LLC
    1 - Bolts
    2 - Trans Mount Bracket
  6. Remove the transmission mount bracket (2), if required.
