INSULATOR, Engine Mount, Front: Removal: RWD

WARNING: This page is about a different car, the 2010 Dodge Charger and 2010 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Locating Battery

Courtesy of CHRYSLER LLC

Disconnect negative battery cable.
Raise vehicle.

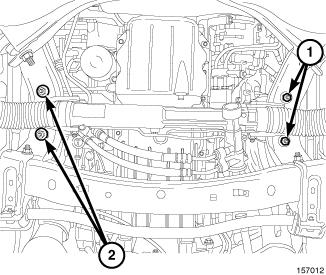

Fig 2: Engine Mount Heat Shield
Courtesy of CHRYSLER LLC
Remove engine mount heat shield fastener (2) and heat shield (1).

Fig 3: Engine Mount Nuts
Courtesy of CHRYSLER LLC
Remove engine mount nuts (1, 2).

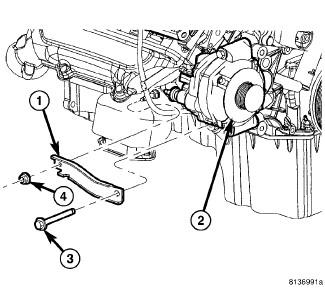

Fig 4: GENERATOR SUPPORT BRACKET-5.7L
Courtesy of CHRYSLER LLC
Remove the generator support bracket (1).

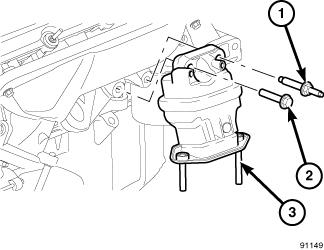

Fig 5: Identifying Hydromount
Courtesy of CHRYSLER LLC
Raise engine using suitable jack.
Remove hydromount fasteners (1, 2).
Remove hydromount (3) from engine.

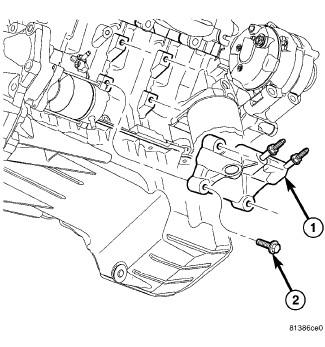

Fig 6: ENGINE MOUNT BRACKET LH
Courtesy of CHRYSLER LLC
Remove the left side engine mount bracket (1), if needed.

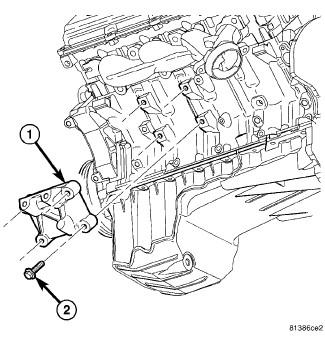

Fig 7: ENGINE MOUNT BRACKET RH
Courtesy of CHRYSLER LLC
Remove the right side engine mount bracket (1), if needed.
