INSULATOR, Engine Mount, Front: Installation: AWD

WARNING: This page is about a different car, the 2010 Dodge Charger and 2010 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

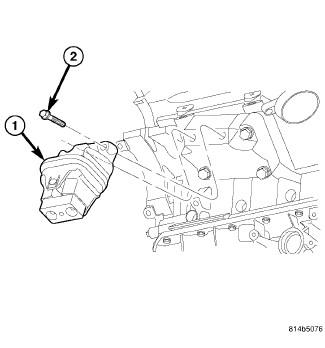

Fig 1: HYDROMOUNT 5.7L AWD LEFT
GC0081794Courtesy of CHRYSLER LLC
1 - HYDROMOUNT
2 - BOLT
  1. Install the engine mount brackets, if removed.
  2. Install left side hydromount (1) on the engine. Tighten hydromount to bracket bolts (2).

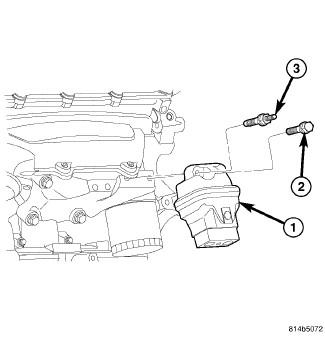

    Fig 2: HYDROMOUNT 5.7L AWD RIGHT
    GC0081795Courtesy of CHRYSLER LLC
    1 - HYDROMOUNT
    2 - BOLT
    3 - STUD
  3. Install the right side hydromount (1) on the engine. Tighten hydromount to bracket fasteners (2, 3).

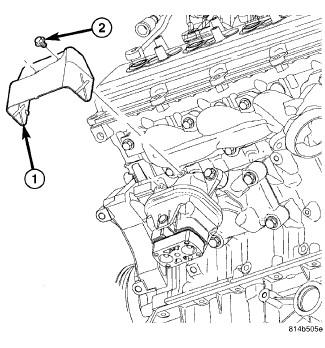

    Fig 3: HEAT SHIELD 5.7L AWD LEFT
    GC0081792Courtesy of CHRYSLER LLC
    1 - HEAT SHIELD
    2 - BOLT
  4. Install the left side heat shield (1).

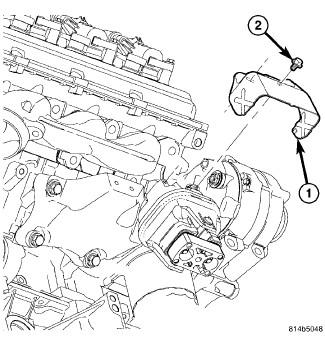

    Fig 4: HEAT SHIELD 5.7L AWD RIGHT
    GC0081793Courtesy of CHRYSLER LLC
    1 - HEAT SHIELD
    2 - BOLT
  5. Install the right side heat shield (1).
  6. Install the generator support bracket.
  7. Lower the engine.
  8. On both sides of the vehicle, install the hydromount to frame nuts on the studs, and tighten.
  9. Lower vehicle.
  10. Connect negative battery cable.
