Engine Block: FLEXPLATE: Removal: Removal

WARNING: This page is about a different car, the 2010 Dodge Charger and 2010 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

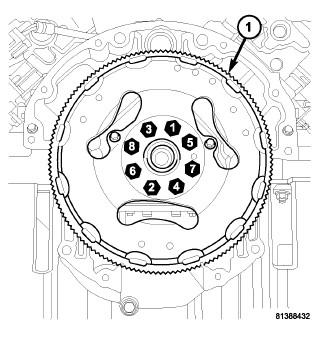

Fig 1: Flex Plate Tightening Sequence
GC0081780Courtesy of CHRYSLER LLC
1 - Flexplate
  1. Remove the transmission.
  2. Remove the bolts and flexplate (1).
