ROCKER ARM, Valve: Installation: Installation

WARNING: This page is about a different car, the 2010 Dodge Charger and 2010 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: PUSHROD RETAINING PLATE

Courtesy of CHRYSLER LLC

CAUTION: The longer pushrods are for the exhaust side and the shorter pushrods are for the intake side.

Install the pushrods in the same order as removed.
Install the pushrod retainer 9070 (1).

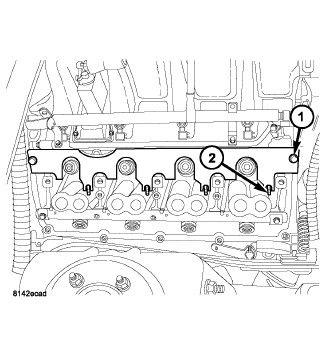

Fig 2: Rocker Shaft Retainers
Courtesy of CHRYSLER LLC

CAUTION: Make sure that the retainers (1) and the rocker arms (2) are not overlapped when tightening bolts or engine damage could result.

CAUTION: Due to the changes in the pushrod clearance holes in the Eagle 5.7L cylinder heads, close attention must be given when installing the pushrod(s) into the tappet(s). Once the pushrod(s) have been installed, use a suitable light to look down through the pushrod hole(s). This will allow you to verify the pushrod(s) are centered properly in the tappet(s) and avoid engine damage. Recheck after the rocker shaft assembly has been installed and tightened to specification.

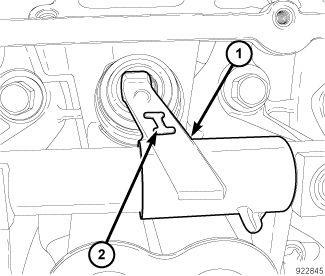

Fig 3: Intake Rocker Arm Marking
Courtesy of CHRYSLER LLC

CAUTION: The rocker shaft assemblies are not interchangeable between the intake and the exhaust, failure to install them in the correct location could result in engine damage. The intake rocker arms (1) are marked with the letter "I" (2).

Fig 4: Rocker Shafts Retaining Bolt Removal & Tightening Sequence
Courtesy of CHRYSLER LLC
Install the rocker shaft assemblies in the same order as removed.
Using the sequence shown in illustration, tighten the rocker shaft bolts to 22 N.m (16 ft. lbs.).
CAUTION: Do Not rotate or crank the engine during or immediately after rocker arm installation. Allow the hydraulic roller tappets adequate time to bleed down (about five minutes).

Fig 5: PUSHROD RETAINING PLATE
Courtesy of CHRYSLER LLC
Remove pushrod retainer 9070 (1).

Fig 6: Cylinder Head Cover Torque Sequence
Courtesy of CHRYSLER LLC
Using the sequence shown in illustration, install the cylinder head cover. See Engine/Cylinder Head/COVER(S), Cylinder Head - Installation .

Fig 7: Removing/Installing Ignition Coil
Courtesy of CHRYSLER LLC
Install the ignition coils (1). Refer to Electrical/Ignition Control/COIL, Ignition - Removal .
Install the engine cover.

Fig 8: Battery
Courtesy of CHRYSLER LLC
Connect the negative battery cable (1).
