Section 316 (Charging System (Service Information)): Generator: Removal: 3.5L

WARNING: This page is about a different car, the 2010 Dodge Charger and 2010 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: GENERATOR 3.5L
GC0080020Courtesy of CHRYSLER LLC
WARNING: DISCONNECT NEGATIVE CABLE FROM BATTERY BEFORE REMOVING BATTERY OUTPUT WIRE (B+ WIRE) FROM GENERATOR. FAILURE TO DO SO CAN RESULT IN INJURY OR DAMAGE TO ELECTRICAL SYSTEM.
  1. Disconnect and isolate negative battery cable at battery.
  2. Remove generator drive belt. Refer to Cooling/Accessory Drive/BELT, Serpentine - Removal .
  3. Remove upper most mounting bolt (2) from generator (1).
  4. Remove generator bracket bolt (3) and remove bracket (4).
    Fig 2: ALTERNATOR ELECTRICAL CONNECTION
    GC0080018Courtesy of CHRYSLER LLC
  5. Unsnap plastic protective cover (3) from B+ mounting stud.
  6. Remove B+ terminal mounting nut (2) and B+ terminal (1) at rear of generator.
  7. Disconnect field wire electrical connector (4) by pushing on connector tab.

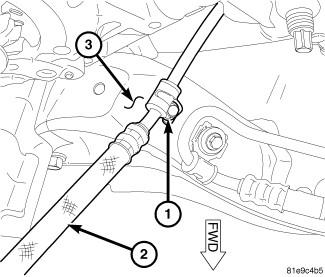

    Fig 3: TRANS COOLER LINE CLAMP
    GC0080021Courtesy of CHRYSLER LLC
  8. Raise and support vehicle.
  9. Remove middle splash shield.
  10. Remove bolt (1) from transmission cooler line clamp at right crossmember (3) and reposition transmission cooler line (2).
    Fig 4: GENERATOR 3.5L
    GC0080020Courtesy of CHRYSLER LLC
  11. Remove lower mounting bolts (2) from generator (1).
  12. Remove generator from engine compartment.
