Installation - 5.7L

WARNING: This page is about a different car, the 2010 Dodge Charger and 2010 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

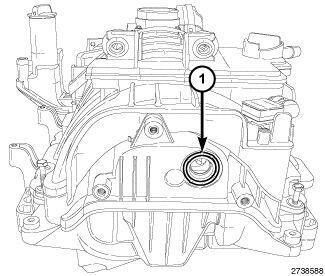

Fig 1: Short Runner Valve Actuator Rubber O-Ring Seal

Courtesy of CHRYSLER LLC

Install a new short runner valve actuator rubber O-ring seal (1).

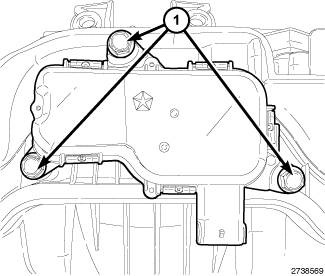

Fig 2: Short Runner Valve Actuator Retaining Bolts
Courtesy of CHRYSLER LLC
Position the short runner valve actuator, install the retaining bolts (1) and tighten to 5 N.m (44 in. lb.).

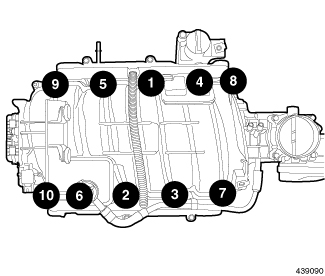

Fig 3: Intake Manifold Retaining Bolt Removal & Tightening Sequence
Courtesy of CHRYSLER LLC
Install the intake manifold and throttle body as an assembly. Refer to Engine/Manifolds/MANIFOLD, Intake - Installation .

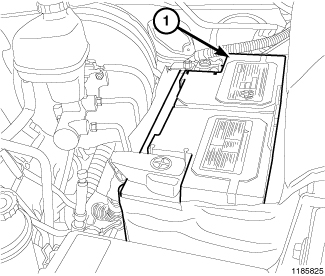

Fig 4: Battery
Courtesy of CHRYSLER LLC
Connect the negative battery cable (1).
