Throttle Body: Installation: 3.5L

WARNING: This page is about a different car, the 2010 Dodge Charger and 2010 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Throttle Gasket

Courtesy of CHRYSLER LLC

CAUTION: Do not apply silicone lubricants to any part of the throttle body.

Install throttle gasket.

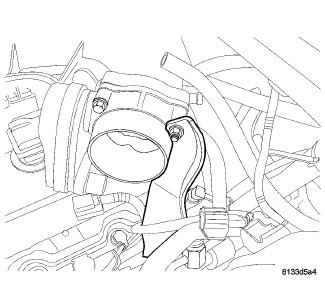

Fig 2: Throttle Body Bracket
Courtesy of CHRYSLER LLC
Install throttle body and bolts.

Fig 3: Throttle Body Bolts Mandatory Torque Sequence
Courtesy of CHRYSLER LLC

CAUTION: The throttle body must be torqued in a mandatory torque sequence. Tighten in a criss - cross pattern to specification.
Tighten the bolts in a mandatory torque criss - cross pattern sequence to 5.5 N.m (50 in. lbs.).
Install the throttle body support bracket to the bottom of the throttle body. Tighten the bolts to 27 N.m (20 ft. lbs.).

Fig 4: Inlet Hose
Courtesy of CHRYSLER LLC
Install inlet hose and tighten clamp.
Connect negative cable to battery.
Use a scan tool and perform the ETC RELEARN function.
