Throttle Body: Installation: 2.7L

WARNING: This page is about a different car, the 2010 Dodge Charger and 2010 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

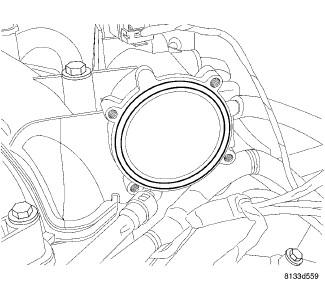

Fig 1: Throttle Gasket

Courtesy of CHRYSLER LLC

NOTE: Make sure the intake gasket is clean and free of debris. Inspect the intake gasket for damage. Replace as necessary.

Install throttle body gasket.

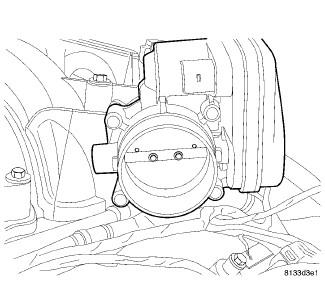

Fig 2: Throttle Body
Courtesy of CHRYSLER LLC

CAUTION: DO NOT OVER TORQUE. Over tightening can cause damage to the throttle body, gaskets, bolts and/or the intake manifold.
Install throttle body, and bolts to intake manifold.

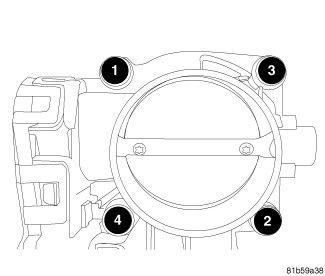

Fig 3: Throttle Body Bolts Mandatory Torque Sequence
Courtesy of CHRYSLER LLC

CAUTION: The throttle body must be torqued in a mandatory torque sequence. Tighten in a criss - cross pattern to specification.
Tighten the bolts in a mandatory torque criss - cross pattern sequence to 5.5 N.m (50 in. lbs.).

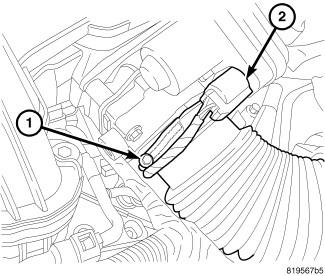

Fig 4: Throttle Body Air Intake Hose Clamp & Electrical Connector
Courtesy of CHRYSLER LLC
Connect electrical connector (2) to throttle body.
Install throttle body air intake hose and tighten clamp (1).
Connect negative battery cable.
Use a scan tool and perform the ETC RELEARN function.
