SENSOR, Crankshaft Position: Installation: Installation

WARNING: This page is about a different car, the 2010 Dodge Charger and 2010 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Crankshaft Position (CKP) Sensor O-Ring

Courtesy of CHRYSLER LLC

NOTE: Before installing the Crankshaft Position (CKP) sensor, check the condition of the sensor O-ring (1) and replace if necessary.

Clean the machined hole in the engine block.
Apply a small amount of engine oil to the CKP sensor O-ring (1).
Install the CKP sensor into the engine block with a slight twisting motion.

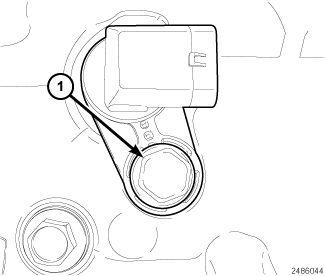

Fig 2: CKP Sensor Mounting Bolt
Courtesy of CHRYSLER LLC

CAUTION: Before tightening the CKP sensor mounting bolt (1), be sure the sensor is completely flush to the cylinder block. If sensor is not flush, damage to the sensor mounting tang may result.
Install the CKP sensor mounting bolt (1) and tighten to 12 N.m (9 ft. lbs.).

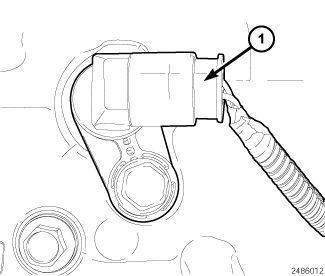

Fig 3: CKP Sensor Electrical Connector
Courtesy of CHRYSLER LLC
Connect the CKP sensor electrical connector (1).
Install the starter motor. Refer to Electrical/Starting/STARTER - Installation
Lower the vehicle.
Install the negative battery cable.
