SENSOR, Air Temperature, Inlet: Installation: 3.5L

WARNING: This page is about a different car, the 2010 Dodge Charger and 2010 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

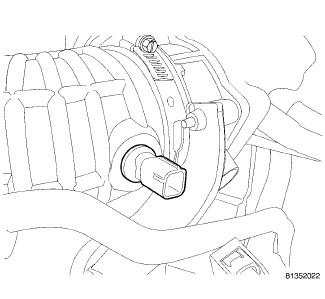

Fig 1: Sensor Orientation

GC0080460

Courtesy of CHRYSLER LLC

Install sensor. Rotate for proper orientation

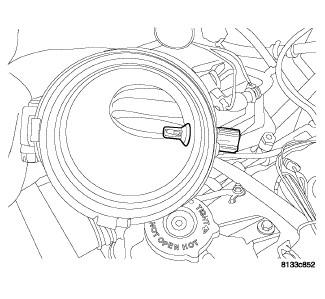

Fig 2: Inlet Air Temperature Sensor Orientation
Courtesy of CHRYSLER LLC
Proper orientation of sensor.

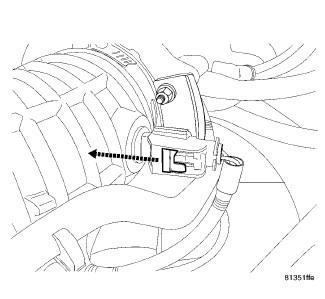

Fig 3: Removing/Installing Inlet Air Temperature Sensor
Courtesy of CHRYSLER LLC
Install electrical connector and lock.
Connect negative battery cable.
