INJECTOR(S), Fuel: Installation: 2.7L
WARNING: This page is about a different car, the 2010 Dodge Charger and 2010 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.
- Lightly lubricate the fuel injector O-rings with a couple drops of clean engine oil.

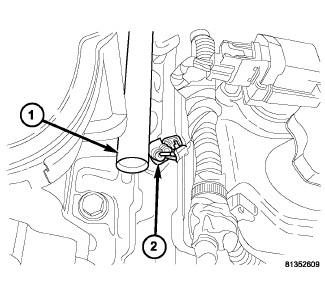

- Install retaining clips on fuel injectors.
- Push injectors into fuel injector rail until clips are in the correct position.
- Position fuel rail over cylinder head, and push rail into place. Tighten fuel rail mounting bolts to 11 N.m (100 in. lbs.) torque.
- Connect fuel supply tube quick connect fittings at the rear of intake manifold. See Fuel System/Fuel Delivery/FITTING, Quick Connect - Standard Procedure .
- Connect electrical connectors to fuel injectors.
- Install intake manifold plenum. Refer to Engine/Manifolds/MANIFOLD, Intake - Installation .
- Connect negative cable to battery.
- Use the scan tool to pressurize the fuel system. Check for leaks.
