SENSOR, Boost Pressure: Removal: Removal
WARNING: This page is about a different car, the 2010 Dodge Charger and 2010 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

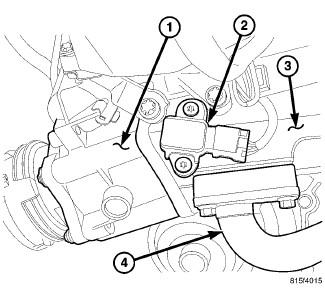

| 1 - AIR FLOW CONTROL VALVE |
| 2 - BOOST PRESSURE SENSOR |
| 3 - CHARGE AIR CROSS OVER TUBE |
| 4 - EGR TUBE |
- Disconnect the negative battery cable.
- Disconnect the boost pressure sensor (2) electrical connector.
- Remove the sensor (2) fasteners from the charge air cross over tube (3), and remove sensor (2).
