SENSOR, Intrusion Module, Export: Installation: Receiver

WARNING: This page is about a different car, the 2010 Dodge Charger and 2010 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

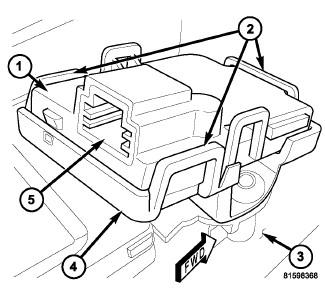

Fig 1: Removing/Installing Intrusion Sensor Receiver
GC0080259Courtesy of CHRYSLER LLC
  1. Position the intrusion sensor receiver (1) to the mounting bracket (4) on the right front corner of the overhead console housing (3).
  2. Press the receiver down until the three latch features (2) of the bracket are fully engaged.
  3. Connect the electrical connector (5) on the receiver housing.
  4. Install the overhead console onto the headliner. Refer to Electrical/Overhead Console - Installation .
  5. Reconnect the battery negative cable.
